Definition:
Terminals - PC Pin Receptacles and Socket Connectors are specialized interconnect components designed to establish secure, removable electrical connections between printed circuit boards (PCBs), wires, or other electronic devices. These connectors feature precision-engineered sockets or receptacles that mate with corresponding pins, ensuring reliable signal transmission and power delivery in compact, high-density applications.
Product Types in This Category:
1. PCB Pin Receptacles Solder-mounted sockets for direct PCB integration, available in vertical/horizontal orientations.
2. Socket Connectors Modular housings with multiple contact cavities for multi-pin header connections.
3. Press-Fit Terminals Tool-free terminals for quick assembly in prototyping or high-volume production.
4. High-Current Sockets Reinforced designs for power delivery in industrial/automotive systems.
5. Surface-Mount (SMT) Receptacles Low-profile connectors for automated PCB assembly.
Purchasing Recommendations:
- Current Rating: Verify amperage requirements to prevent overheating (e.g., 3A+ for power applications).
- Pitch Size: Match pin spacing (e.g., 2.54mm, 1.27mm) to existing headers.
- Material: Gold-plated contacts enhance conductivity; high-temperature plastics suit harsh environments.
- Compliance: Prioritize UL/IEC-certified options for safety-critical uses.
- Supplier Capability: Opt for vendors offering custom pin counts/lengths for scalable solutions.
Ideal for prototyping, consumer electronics, and industrial controls, these connectors balance durability with design flexibility. Partner with trusted manufacturers to ensure compatibility and long-term reliability.
Filter and sort
Categories
H3182-05
CONN PIN RCPT .035-.041 SOLDER

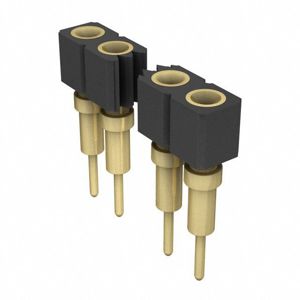

712-83-129-41-001101
CONN PIN RCPT .016-.022 SOLDER

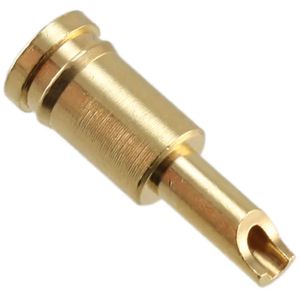

0616-0-18-15-07-27-10-0
CONN PIN RCPT .065-.082 PRESSFIT

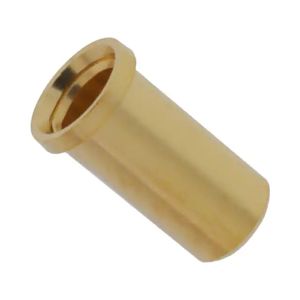

0364-0-15-15-13-27-10-0
CONN PIN RCPT .048-.064 SOLDER
712-83-125-41-001101
CONN PIN RCPT .016-.022 SOLDER

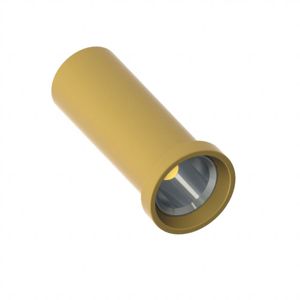

0312-0-15-15-34-14-10-0
CONN PIN RCPT
8730-0-19-01-23-27-10-0
CONN RECEPT PIN .045-.065" .210"
6561-0-15-15-05-27-10-0
RECEPTACLE WITH NO TAIL
712-83-109-41-001101
CONN PIN RCPT .016-.022 SOLDER
0329-0-15-15-34-27-10-0
CONN PIN RCPT .032-.046 SOLDER
0548-0-15-15-21-27-10-0
CONN PIN RCPT .015-.022 SOLDER

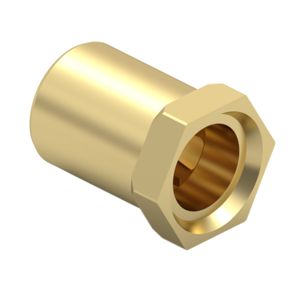

0648-0-15-15-23-27-10-0
ZERO PROFILE RECEPTACLE FOR LEAD
712-87-153-41-001101
CONN PIN RCPT .016-.022 SOLDER
0367-0-15-15-23-27-10-0
CONN PIN RCPT .045-.065 PRESSFIT

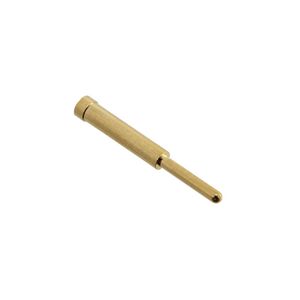

0319-0-15-15-18-27-04-0
CONN PIN RCPT .037-.043 SOLDER
0716-0-33-15-23-27-10-0
CONN PIN RCPT .045-.065 SOLDER
3-5331677-4
CONN PIN RCPT .030-.033 SOLDER
712-83-150-41-001101
CONN PIN RCPT .016-.022 SOLDER
1-5050871-0
CONN PIN RCPT .050-.057 SOLDER

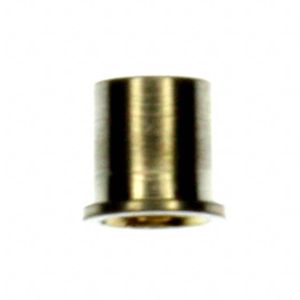

9372-0-15-01-23-14-10-0
CONN RECEPT PIN .045-.065" .120"
