Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
2-521361-2
CONN QC TAB 18-22AWG 0.187 CRIMP
0190050009
CONN QC RCPT 14-16AWG 0.250
638207122008
WR-FAST_THT MALE RIGHT ANGLED HE
3-520125-2
CONN QC RCPT 14-16AWG 0.187
3240534
CONN QC RCPT 16-20AWG 0.110
2-520194-2
CONN QC RCPT 18-22AWG 0.187
76-IMD22-187L
PVC INS MALE DISCON 22-18 50 BAG
62138-1
CONN QC RCPT 20-24AWG 0.187
60938-1
CONN QC RCPT 14-18AWG 0.250
DNFR14205FIB-KD
CONN QC RCPT 14-16AWG 0.187

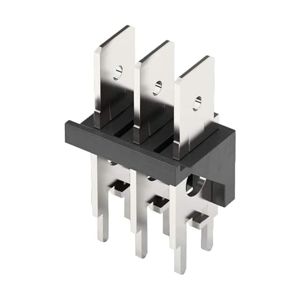

638207122006
WR-FAST_THT MALE RIGHT ANGLED HE
EDV10-250M-Q
STRONGHOLD MALE DISCONNECT, VINY
2299280-1
POD-LOK 250 FLAG AWG 22-18 PTPBR
5-160555-2
CONN QC RCPT 17-20AWG 0.110
1969206-1
CONN QC RCPT 14-18AWG 0.250
73F-375-50-P
CONN QC RCPT 10-12AWG 0.375
76-MD22C
NON INS MALE DISCONNECT 100 BAG
60650-1
CONN QC RCPT 14-18AWG 0.250
0190120032
CONN QC RCPT/TAB 14-16AWG 0.250
DPF10-250FIB-L
CONN QC RCPT 10-12AWG 0.250
