Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories
51864-7
CONN RING CIRC 16AWG #10 CRIMP
31123
CONN RING CIRC 10-12AWG #5/16
42946-2
CONN RING OVAL 8-12AWG CRIMP
130054
CONN RING CIRC 16-22AWG #1/4
8-32996-1
CONN RING CIRC 8AWG #8 CRIMP
76-RT12-3/8L
NON INS RING TERM 12-10WG 50 BAG
350080-1
CONN RING CIRC 14-18AWG #10
3240222
CONN RING CIRC 8AWG M10 CRIMP
328999
CONN RING CIRC 14-16AWG #3/8
MU18-10R/LK
CONN RING CIRC 18-22AWG #10
0191930099
CONN RING CIRC 10-12AWG #7/16
34833
CONN RING CIRC 10-12AWG #3/8
0190730084
CONN RING CIRC 14-16AWG #6 CRIMP
19067-0034
RING NYLAKRIMP FUNNEL ENTRY (D-9

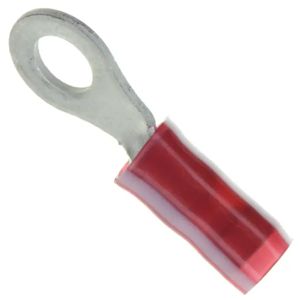

1-320551-8
CONN RING CIRC 18AWG #8 CRIMP

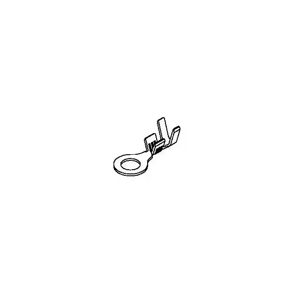

35750-0910
RING TERMINAL
52265-3
CONN RING CIRC 6AWG #10 CRIMP
RVS2-4-10
RING TERMINALS, PVC INSULATED, 1
19073-0202
RING AVIKRIMP EXPD (C-830-56X)
L-11-6-W
CONN RING CIRC 18-22AWG #6 CRIMP
