Terminals - Ring Connectors: Secure and Reliable Electrical Connections
Definition:
Terminals - Ring Connectors are a specialized type of electrical connector designed to create secure, permanent, or semi-permanent connections in wiring systems. These connectors feature a circular (ring-shaped) terminal that is crimped or soldered to a wire and then fastened to a stud or post using a screw or bolt. They are widely used in applications requiring robust, vibration-resistant connections.
Types of Ring Connectors:
1. Insulated vs. Non-Insulated: Insulated ring terminals have a plastic sleeve for added protection against short circuits, while non-insulated types are ideal for compact spaces.
2. Material Options: Available in copper, brass, or tin-plated variants for corrosion resistance and optimal conductivity.
3. Size Variations: Sizes range from small (e.g., 22-16 AWG) for electronics to large (e.g., 6-2 AWG) for automotive or industrial power systems.
4. Stud Hole Diameter: Standard sizes include 1/4", 5/16", and 3/8" to match different stud dimensions.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the terminal s AWG rating corresponds to your wire size for a secure crimp.
- Environment Considerations: Choose insulated terminals for exposed or high-moisture environments and corrosion-resistant materials for harsh conditions.
- Tool Compatibility: Use a quality crimping tool to avoid loose connections, which can lead to overheating.
- Certifications: Look for UL, CSA, or RoHS compliance for safety and environmental standards.
Ideal for automotive, marine, industrial, and DIY projects, ring connectors provide a dependable solution for high-current and vibration-prone applications. Invest in the right type to ensure long-term electrical reliability.
Filter and sort
Categories
PN14-4R-C
CONN RING CIRC 14-16AWG #4 CRIMP
0191640086
CONN RING CIRC 18-22AWG #8 CRIMP
2-321868-2
CONN RING CIRC 1/0AWG #3/8 CRIMP
0191930015
CONN RING CIRC 18-22AWG #8 CRIMP
51861-4
CONN RING CIRC 14-16AWG #10
0190670114
CONN RING FLAT 2/0AWG #1/2 CRIMP
132005-1
CONN RING CIRC 10-12AWG M4 CRIMP
3240016
CONN RING CIRC 16-20AWG M3 CRIMP
324054
CONN RING CIRC 2AWG #3/8 CRIMP

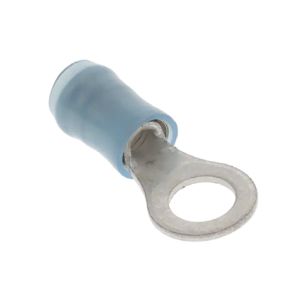

2-165655-1
CONN RING CIRC 14-16AWG M5 CRIMP
2-323682-1
CONN RING CIRC 14-16AWG #1/4
140731-2
CONN RING CIRC 15-22AWG CRIMP

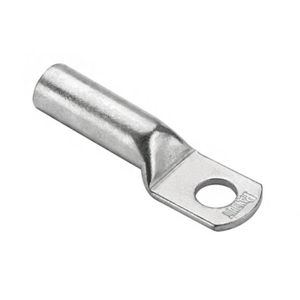

LCMB95-12-X
CONN TERM RECT RING 95MM #M12
94851
CONN RING CIR 14-16AWG #10 1=1PC
P14-10R-C
CONN RING CIRC 14-18AWG #10
0190730139
CONN RING CIRC 10-12AWG #3/8
0190690050
CONN RING CIRC 18-22AWG #3/8
0191930278
CONN RING CIRC 4AWG #5/16 CRIMP
31396
CONN RING CIRC 16-22AWG #6 CRIMP
51979-2
CONN RING CIRC 10-12AWG #10
