Terminals - Solder Lug Connectors
Terminals - Solder Lug Connectors: Category Overview
Definition & Purpose
Terminals - Solder Lug Connectors are a specialized subset of electrical connectors designed to create secure, solderable termination points for wires or components. These connectors feature a metal lug (often made of brass, copper, or plated alloys) with a flat or looped base, enabling reliable mechanical and electrical connections through soldering. They are widely used in applications requiring robust, vibration-resistant joints, such as power distribution, industrial equipment, and automotive systems.
Types of Solder Lug Connectors
- Ring Terminals: Circular lugs with a central hole for screw or bolt fastening, ideal for high-current applications.
- Spade Terminals (Fork Lug): U-shaped forks for quick-disconnect scenarios, offering tool-free installation.
- Hook Terminals: J-shaped ends for temporary or semi-permanent wire anchoring.
- Pin Terminals: Straight solderable pins for PCB or terminal block integration.
- Flag Terminals: Flat, flag-shaped lugs for compact spaces or layered connections.
Materials range from bare copper (for cost-efficiency) to tin- or silver-plated variants (enhanced corrosion resistance). Sizes vary by wire gauge (e.g., 22-10 AWG) and lug hole diameter (e.g., #4, #8 screws).
Purchasing Recommendations
- Current Rating: Match the terminal s ampacity to your circuit s load (e.g., thick lugs for high-power systems).
- Environment: Choose plated or stainless-steel lugs for humid or corrosive settings.
- Compliance: Prioritize UL, IEC, or RoHS-certified products for safety-critical uses.
- Soldering Compatibility: Ensure the lug s metallurgy aligns with your solder type (e.g., lead-free solder for RoHS compliance).
Solder lug connectors balance durability with ease of installation, making them indispensable for permanent electrical assemblies. Select based on mechanical stress, conductivity needs, and environmental factors to optimize performance.
Filter and sort
Categories
7340
CONN TERM LUG RING FLAT
534-918
SOLDER TAB W LOCK WASHER SIZE 6
7329
CONN TERM LUG RING #6 FLAT
7314
CONN TERM LUG LOCKWASHR #4 ANGLE

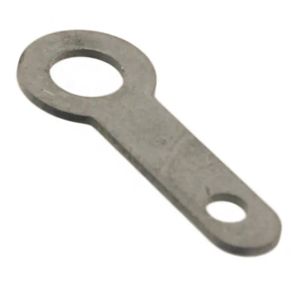

7326
CONN TERM LUG RING #6 FLAT
7331
CONN TERM LUG RING #4 FLAT
4000
CONN TERM LUG RING TH
534-906
SOLDER TAB W LOCK WASHER SIZE 8
1276
CONN TERM LUG RING #8 FLAT
4695
CONN TERM LUG FLAT 1PC
1275
CONN TERM LUG RING #6 FLAT
7339
CONN TERM LUG RING FLAT
