Terminals - Spade Connectors: Reliable Connections for Electrical Systems
Definition:
Terminals - Spade Connectors are a specialized type of electrical connector designed to create secure, removable connections in wiring systems. These connectors feature a flat, fork-like metal tongue (the "spade") that slides onto a corresponding stud or binding post, ensuring a stable and conductive link. Commonly used in automotive, industrial, and consumer electronics, spade connectors simplify wiring maintenance and upgrades while delivering consistent performance.
Types of Spade Connectors:
1. Insulated vs. Non-Insulated: Insulated spade connectors include a plastic sleeve for added safety and corrosion resistance, while non-insulated variants are ideal for compact spaces or custom shielding.
2. Fork Size Variations: Available in standard sizes (e.g., 1/4", 3/16") to match stud dimensions, with options for narrow or wide forks.
3. Material Options: Typically made from copper, brass, or tin-plated metals for optimal conductivity and durability.
4. Gender Types: Includes male (spade) and female (receptacle) configurations for versatile pairing.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the connector s wire barrel size aligns with your cable s diameter for a snug, secure crimp.
- Environment Considerations: Choose insulated connectors for moisture-prone or high-vibration settings (e.g., automotive applications).
- Quality Compliance: Prioritize UL-listed or RoHS-compliant products to guarantee safety and environmental standards.
- Tool Compatibility: Use certified crimping tools for a gas-tight connection, reducing resistance and overheating risks.
Ideal for both DIY enthusiasts and professionals, spade connectors offer a balance of simplicity and reliability in electrical interconnections. Select the right type to enhance your project s efficiency and longevity.
Filter and sort
Categories

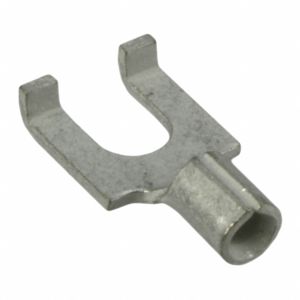

2-320749-2
CONN SPADE TERM 16-22AWG #6
0191640069
CONN SPADE TERM 10-12AWG #6 YEL
BS-32-8
CONN SPADE TERM 14-16AWG #8
0191440001
CONN SPADE TERM 18-22AWG #6 RED
52421
CONN SPADE TERM 14-16AWG #8 BLU

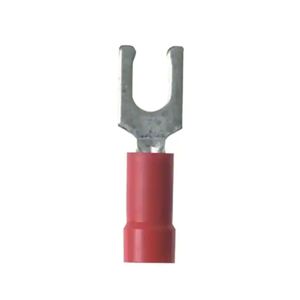

EV18-10LFB-Q
STRONGHOLD LOCKING FORK TERMINAL
0191270007
CONN SPADE TERM 18-22AWG #6 RED
19129-0005
BLOCK SPADE KRIMPTITE (C-1105-10
MVU18-6FX-BOTTLE
CONN SPADE TERM 18-22AWG 6 100PC

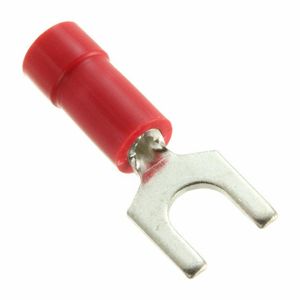

PV18-10F-MY
CONN SPADE TERM 18-22AWG #10 RED
MVU18-4FLK
CONN SPADE TERM 18-22AWG #4 RED
8-52927-1
CONN SPADE TERM 16-22AWG #4 RED

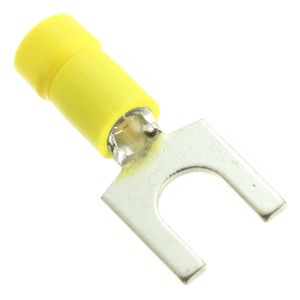

PV10-14F-E
CONN SPADE TERM 10-12AWG #1/4

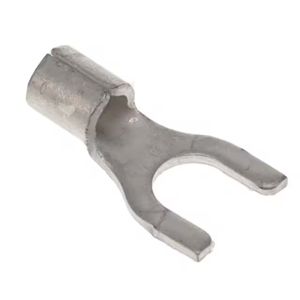

0191410059
CONN SPADE TERM 14-16AWG #8
0191190032
CONN SPADE TERM #10 BLUE
8-324605-1
CONN SPADE TERM 16-22AWG #2

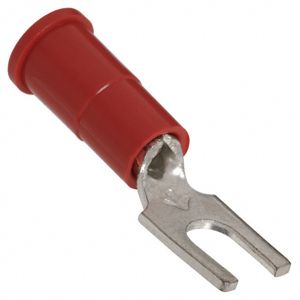

MNG18-6FB/SX-BOTTLE
CONN SPADE TERM 18-22AWG 6 100PC
61498-1
CONN SPADE TERM 22-28AWG #5

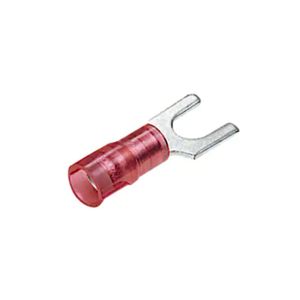

PNF18-8F-3K
CONN SPADE TERM 18-22AWG #8 RED

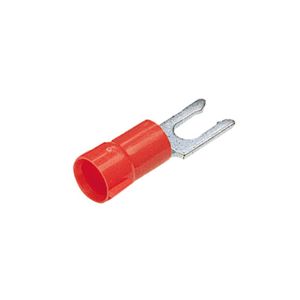

PV18-6LFB-3K
CONN SPADE TERM 18-22AWG #6 RED
