Terminals - Spade Connectors: Reliable Connections for Electrical Systems
Definition:
Terminals - Spade Connectors are a specialized type of electrical connector designed to create secure, removable connections in wiring systems. These connectors feature a flat, fork-like metal tongue (the "spade") that slides onto a corresponding stud or binding post, ensuring a stable and conductive link. Commonly used in automotive, industrial, and consumer electronics, spade connectors simplify wiring maintenance and upgrades while delivering consistent performance.
Types of Spade Connectors:
1. Insulated vs. Non-Insulated: Insulated spade connectors include a plastic sleeve for added safety and corrosion resistance, while non-insulated variants are ideal for compact spaces or custom shielding.
2. Fork Size Variations: Available in standard sizes (e.g., 1/4", 3/16") to match stud dimensions, with options for narrow or wide forks.
3. Material Options: Typically made from copper, brass, or tin-plated metals for optimal conductivity and durability.
4. Gender Types: Includes male (spade) and female (receptacle) configurations for versatile pairing.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the connector s wire barrel size aligns with your cable s diameter for a snug, secure crimp.
- Environment Considerations: Choose insulated connectors for moisture-prone or high-vibration settings (e.g., automotive applications).
- Quality Compliance: Prioritize UL-listed or RoHS-compliant products to guarantee safety and environmental standards.
- Tool Compatibility: Use certified crimping tools for a gas-tight connection, reducing resistance and overheating risks.
Ideal for both DIY enthusiasts and professionals, spade connectors offer a balance of simplicity and reliability in electrical interconnections. Select the right type to enhance your project s efficiency and longevity.
Filter and sort
Categories

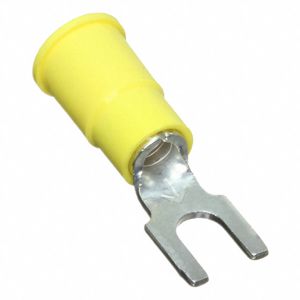

BS-33-8-P
CONN SPADE TERM 10-12AWG #8 YEL
52403-1
CONN SPADE TERM 22-26AWG #6 YEL
0191310018
CONN SPADE TERM 14-16AWG #8 BLU
0191270009
CONN SPADE TERM 18-22AWG #6 RED

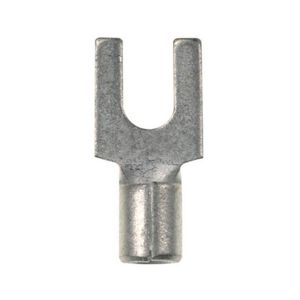

P10-6F-L
CONN SPADE TERM 10-12AWG #6

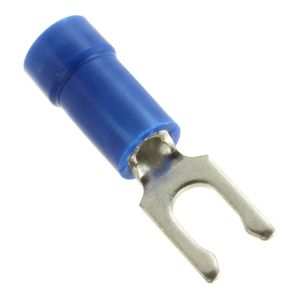

PV14-6LF-M
CONN SPADE TERM 14-16AWG #6 BLU

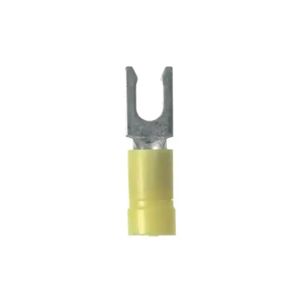

PV10-14LFB-2K
CONN SPADE TERM 10-12AWG #1/4

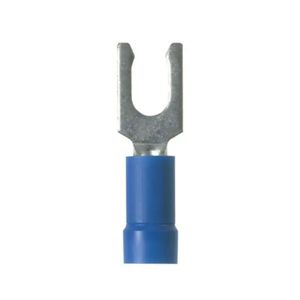

PV14-10LF-C
CONN SPADE TERM 14-16AWG #10 BLU
PN18-6FF-3K
CONN SPADE TERM 18-22AWG #6 RED

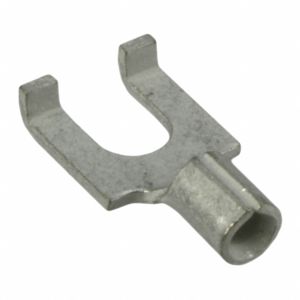

320749
CONN SPADE TERM 16-22AWG #6
19131-0034
BLOCK SPADE INSULKRIMP (AA-234-1
0191190080
CONN SPADE TERM #6 BLUE

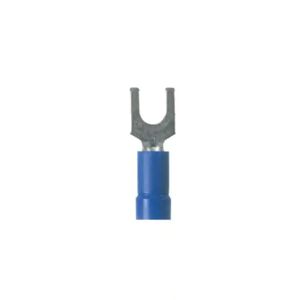

PV14-10F-C
CONN SPADE TERM 14-16AWG #10 BLU
94883
CONN SPADE TERM 10-12AWG #8 YEL
8-35152-2
CONN SPADE TERM 10-12AWG #8 YEL
42113-2
CONN SPADE TERM 10-12AWG #8
0191960039
CONN SPADE TERM 14-16AWG #8 BLU
324015
CONN SPADE TERM 10-12AWG #10 YEL
76-IST22-10C
PVC INS SPADE TERM 22-18G 100 BA
76-ST22-04
NON INS SPADE TERM 22-18G
