Terminals - Spade Connectors: Reliable Connections for Electrical Systems
Definition:
Terminals - Spade Connectors are a specialized type of electrical connector designed to create secure, removable connections in wiring systems. These connectors feature a flat, fork-like metal tongue (the "spade") that slides onto a corresponding stud or binding post, ensuring a stable and conductive link. Commonly used in automotive, industrial, and consumer electronics, spade connectors simplify wiring maintenance and upgrades while delivering consistent performance.
Types of Spade Connectors:
1. Insulated vs. Non-Insulated: Insulated spade connectors include a plastic sleeve for added safety and corrosion resistance, while non-insulated variants are ideal for compact spaces or custom shielding.
2. Fork Size Variations: Available in standard sizes (e.g., 1/4", 3/16") to match stud dimensions, with options for narrow or wide forks.
3. Material Options: Typically made from copper, brass, or tin-plated metals for optimal conductivity and durability.
4. Gender Types: Includes male (spade) and female (receptacle) configurations for versatile pairing.
Purchasing Recommendations:
- Match Wire Gauge: Ensure the connector s wire barrel size aligns with your cable s diameter for a snug, secure crimp.
- Environment Considerations: Choose insulated connectors for moisture-prone or high-vibration settings (e.g., automotive applications).
- Quality Compliance: Prioritize UL-listed or RoHS-compliant products to guarantee safety and environmental standards.
- Tool Compatibility: Use certified crimping tools for a gas-tight connection, reducing resistance and overheating risks.
Ideal for both DIY enthusiasts and professionals, spade connectors offer a balance of simplicity and reliability in electrical interconnections. Select the right type to enhance your project s efficiency and longevity.
Filter and sort
Categories
94881
CONN SPADE TERM 10-12AWG #6 YEL
76-IST22-06L
PVC INS SPADE TERM 22-18G 50 BAG
EV14-8FNB-Q
STRONGHOLD NARROW FORK TERMINAL,

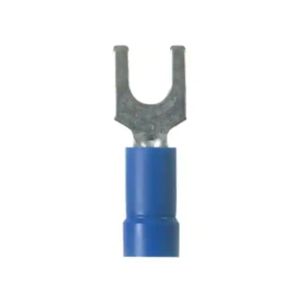

EV14-6FB-Q
STRONGHOLD FORK TERMINAL, VINYL

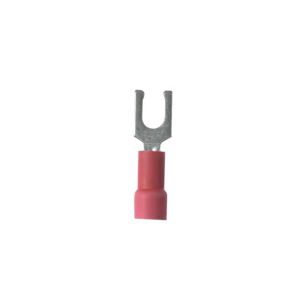

PV18-8LFX-MY
CONN SPADE TERM 18-22AWG #8 RED
76-ST22-1/4
NON INS SPADE TERM 22-18G
52454
CONN SPADE TERM 16-22AWG #8 RED
326861
CONN SPADE TERM 16-22AWG #6 RED

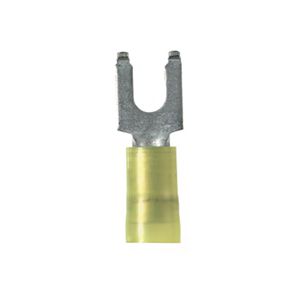

PN10-10FF-D
CONN SPADE TERM 10-12AWG #10 YEL

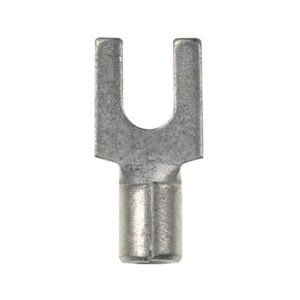

P10-10F-D
CONN SPADE TERM 10-12AWG #10
326741
CONN SPADE TERM 14-16AWG #8 BLU
2-320665-1
CONN SPADE TERM 16-22AWG #6 RED

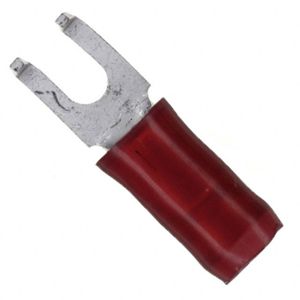

32561
CONN SPADE TERM 16-22AWG #6 RED
PV14-10LF-M
CONN SPADE TERM 14-16AWG #10 BLU

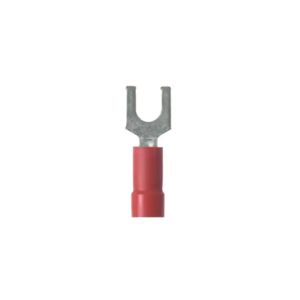

PV18-10FN-CY
CONN SPADE TERM 18-22AWG #10 RED

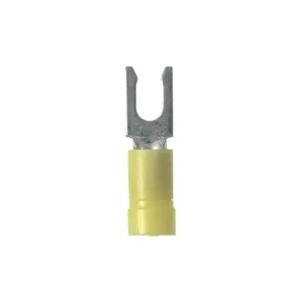

PV10-6LF-L
CONN SPADE TERM 10-12AWG #6 YEL
0190990048
CONN SPADE TERM 10-12AWG #8 YEL
34167
CONN SPADE TERM 14-16AWG #10 BLU

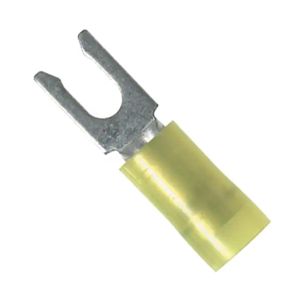

PN10-14LF-L
CONN SPADE TERM 10-12AWG #1/4
52942-1
CONN SPADE TERM 10-12AWG #8 YEL
