Definition:
Turret connectors are a specialized type of terminal designed for secure, solderable connections in electrical and electronic assemblies. These connectors feature raised, cylindrical posts (turrets) that allow wires or components to be mechanically anchored and soldered in place, ensuring reliable conductivity and strain relief. They are commonly used in PCB (printed circuit board) applications, prototyping, and industrial electronics where durable, low-profile connections are essential.
Types of Turret Connectors:
Turret connectors are available in various configurations to suit different mounting and connectivity needs, including:
- Single/Double Turret Terminals: Isolated or paired turrets for individual or multi-wire connections.
- PCB-Mount Turrets: Designed for through-hole or surface-mount soldering on circuit boards.
- Panel-Mount Turrets: Used for chassis or enclosure installations.
- Customizable Turrets: Adjustable height or spacing for specialized applications.
Buying Recommendations:
When selecting turret connectors, consider the following factors:
1. Material: Opt for high-conductivity metals like brass or phosphor bronze, often plated with tin or gold for corrosion resistance.
2. Current Rating: Ensure the terminal supports the required current load for your application.
3. Mounting Style: Choose between PCB, panel, or free-hanging designs based on assembly needs.
4. Compliance: Verify adherence to industry standards (e.g., UL, IEC) for safety and performance.
Turret connectors excel in prototyping, repair work, and permanent installations where soldered reliability is critical. For bulk orders, evaluate supplier certifications and lead times to streamline production.
Filter and sort
Categories
11218
TERM TURRET PIN L=3.56MM TIN
2111-2-00-44-00-00-07-0
TERM TURRET SINGLE L=1.79MM
1562-1
TERM TURRET HOLLOW L=3.96MM TIN
11306
TERM TURRET SINGLE L=7.37MM TIN
2506-4-00-01-00-00-07-0
TERM TURRET SINGLE L=3.96MM
1613-2
TERM TURRET DOUBLE L=4.72MM TIN
11305
TERM TURRET SINGLE L=7.7MM TIN
1507-2
TERM TURRET HOLLOW L=8.33MM TIN
1587-1
TERM TURRET SINGLE L=9.14MM TIN

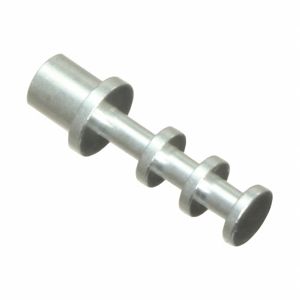

2508-2-00-44-00-00-07-0
TERM TURRET SINGLE L=7.65MM
2506-4-00-44-00-00-07-0
TERM TURRET SINGLE L=3.96MM
11312
TERM TURRET SINGLE L=10.29MM TIN
2355-3-00-50-00-00-07-0
TERM TURRET SINGLE L=4.85MM
11304
TERM TURRET SINGLE L=6.35MM TIN
11112
TERM TURRET HOLLOW L=11.51MM TIN
11250
TERM TURRET DOUBLE L=4.98MM TIN
1508-2
TERM TURRET SINGLE L=2.36MM TIN

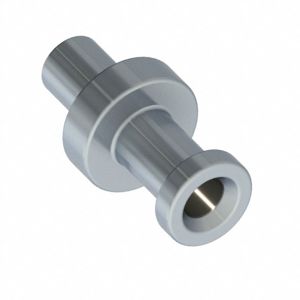

2506-2-00-01-00-00-07-0
TERM TURRET SINGLE L=3.96MM
2316-2-00-80-00-00-07-0
TERM TURRET SINGLE L=3.84MM TIN
1545-2
TERM TURRET DOUBLE L=9.14MM TIN
