Terminals - Turret Connectors
Terminals - Turret Connectors
Definition:
Turret connectors are a specialized type of terminal designed for secure, solderable connections in electrical and electronic assemblies. These connectors feature raised, cylindrical posts (turrets) that allow wires or components to be mechanically anchored and soldered in place, ensuring reliable conductivity and strain relief. They are commonly used in PCB (printed circuit board) applications, prototyping, and industrial electronics where durable, low-profile connections are essential.
Types of Turret Connectors:
Turret connectors are available in various configurations to suit different mounting and connectivity needs, including:
- Single/Double Turret Terminals: Isolated or paired turrets for individual or multi-wire connections.
- PCB-Mount Turrets: Designed for through-hole or surface-mount soldering on circuit boards.
- Panel-Mount Turrets: Used for chassis or enclosure installations.
- Customizable Turrets: Adjustable height or spacing for specialized applications.
Buying Recommendations:
When selecting turret connectors, consider the following factors:
1. Material: Opt for high-conductivity metals like brass or phosphor bronze, often plated with tin or gold for corrosion resistance.
2. Current Rating: Ensure the terminal supports the required current load for your application.
3. Mounting Style: Choose between PCB, panel, or free-hanging designs based on assembly needs.
4. Compliance: Verify adherence to industry standards (e.g., UL, IEC) for safety and performance.
Turret connectors excel in prototyping, repair work, and permanent installations where soldered reliability is critical. For bulk orders, evaluate supplier certifications and lead times to streamline production.
Filter and sort
Categories
1633-3
TERM TURRET PIN L=1.93MM TIN
H9021-01
TERM TURRET SINGLE L=7.65MM TIN

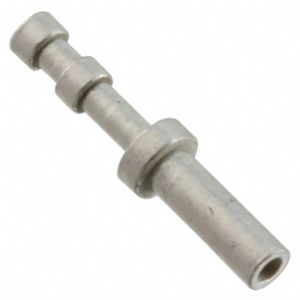

2108-3-00-01-00-00-07-0
TERM TURRET SINGLE L=3.96MM

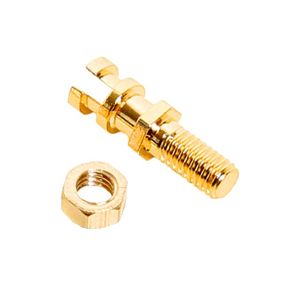

BP-TB-SCWG
BIFUR. SCRWN GD TUR LUG EPXY BRD

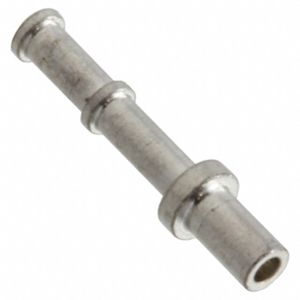

2110-2-00-50-00-00-07-0
TERM TURRET SINGLE L=5.84MM
2506-1-00-50-00-00-07-0
TERM TURRET SINGLE L=3.96MM
1593-3
TERM TURRET SINGLE L=3.96MM TIN
11500
TERM TURRET SINGLE L=9.93MM TIN
11303
TERM TURRET SINGLE L=4.93MM TIN
2506-1-00-80-00-00-07-0
TERM TURRET SNG
1540-2
TERM TURRET HOLLOW L=6.75MM TIN
1528-1
TERM TURRET SINGLE L=2.36MM TIN
11322
TERM TURRET HOLLOW L=4.65MM TIN

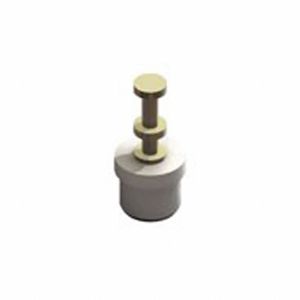

11302
TERM TURRET SINGLE L=6.35MM TIN
2101-3-00-80-00-00-07-0
TERM TURRET SINGLE L=3.43MM TIN
H2074Z01
TERM TURRET SLOTTED L=8.74MM TIN
2506-4-00-80-00-00-07-0
TERM TURRET SNG
2305-2-00-44-00-00-07-0
TERM TURRET SINGLE L=4.72MM
11115
TERM TURRET L=11.51MM TIN

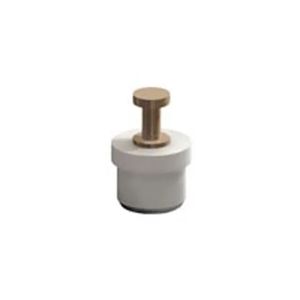

11321
TERM TURRET SINGLE L=9.4MM TIN
