FS75R12KT4B11BOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 75A 385W
$0.00
Available to order
Reference Price (USD)
10+
$99.20700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Infineon Technologies's FS75R12KT4B11BOSA1, a high-efficiency IGBT module in the Discrete Semiconductor Products range. This transistor module incorporates seventh-generation micro-pattern trench technology for minimal conduction losses. Special features include: integrated gate driver compatibility, SCADA-ready monitoring interfaces, and corrosion-resistant terminals. Application areas cover industrial cranes, subway power networks, and large-scale battery storage systems. The FS75R12KT4B11BOSA1 is particularly effective in high-ambient-temperature environments like steel mill drives. Infineon Technologies brings decades of semiconductor expertise to every FS75R12KT4B11BOSA1 module.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 75 A
- Power - Max: 385 W
- Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 75A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 4.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Infineon Technologies
FF450R17ME4B11BOSA1
Microsemi Corporation
APT200GN60JG
Infineon Technologies
6MS30017E43W38169NOSA1
Infineon Technologies
FP50R12KT4B11BOSA1
Vishay General Semiconductor - Diodes Division
VS-GB75NA60UF
Vishay General Semiconductor - Diodes Division
CPV363M4F
Infineon Technologies
FS100R07N2E4B11BOSA1
Vishay General Semiconductor - Diodes Division
VS-GA200SA60SP

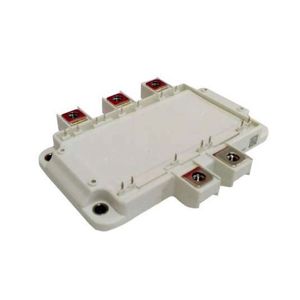

SemiQ
