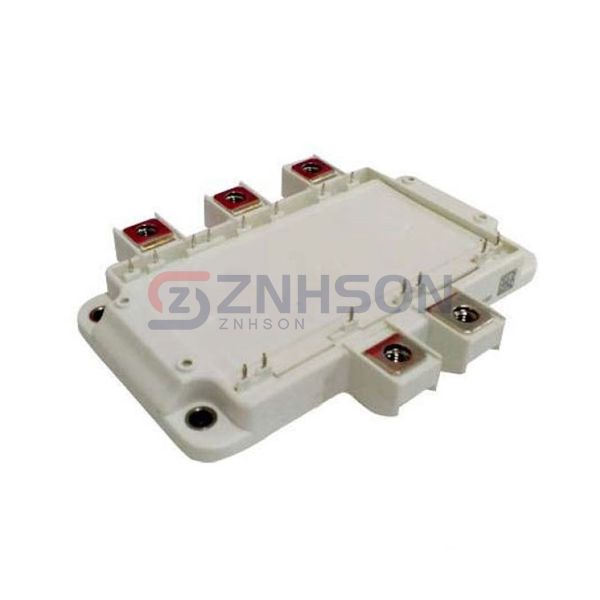

GSID100A120S5C1
SemiQ
SemiQ
IGBT MOD 1200V 170A 650W
$0.00
Available to order
Reference Price (USD)
4+
$119.46500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the power of SemiQ's GSID100A120S5C1, a premium IGBT module in the Transistors - IGBTs - Modules classification. This discrete semiconductor solution offers ultra-low conduction losses and avalanche ruggedness for harsh environments. The module's unique selling points include: VCE(sat) negative temperature coefficient, aluminum nitride substrate, and press-pack technology. Major application sectors include rail transportation, marine propulsion, and aerospace power systems. The GSID100A120S5C1 performs exceptionally well in high-voltage DC transmission and pulsed power applications. With SemiQ's GSID100A120S5C1, you get unmatched reliability in power electronics designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 170 A
- Power - Max: 650 W
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 100A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 13.7 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
