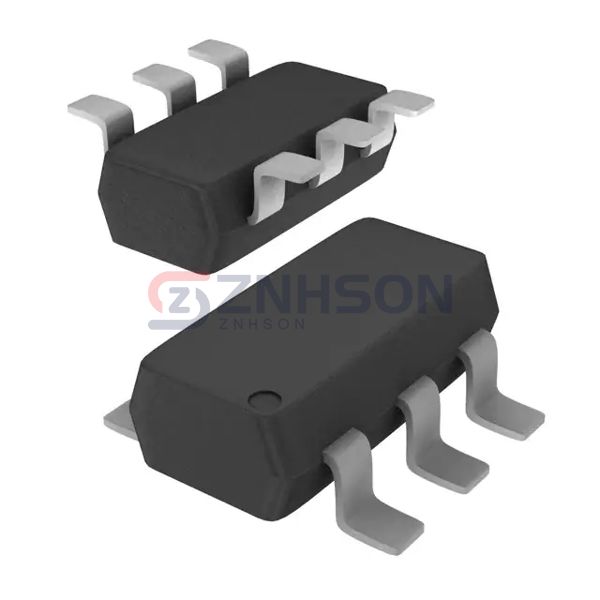

PMN40LN,135
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 30V 5.4A 6TSOP
$0.12
Available to order
Reference Price (USD)
1+
$0.12000
500+
$0.1188
1000+
$0.1176
1500+
$0.1164
2000+
$0.1152
2500+
$0.114
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the PMN40LN,135 from NXP USA Inc., a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the PMN40LN,135 ensures reliable performance in demanding environments. Upgrade your circuit designs with NXP USA Inc.'s cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 5.4A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 38mOhm @ 2.5A, 10V
- Vgs(th) (Max) @ Id: 2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 13.8 nC @ 10 V
- Vgs (Max): ±15V
- Input Capacitance (Ciss) (Max) @ Vds: 555 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 1.75W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SC-74
- Package / Case: SC-74, SOT-457
