Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
XC5D-4821
CONN DIN RCPT 48POS PCB GOLD
536460-5
CONN DIN RCPT 32POS PCB GOLD
86094327313T55F1LF
CONN DIN HDR 48POS BRD EDGE RA
5535091-5
CONN DIN RCPT 48POS PCB GOLD
09033966921
CONN DIN HDR 96POS PCB RA
XC5B-1631-3
CONN DIN RCPT 16POS PCB GOLD
09031646555
DIN-SIGNAL C064MS-3 0C1-2-V7
09032647850
CONN DIN RCPT 96POS PCB GOLD
5535071-4
CONN DIN RCPT 48POS PCB GOLD
09731246907
CONN DIN HDR 32POS PCB GOLD
09031327921
CONN DIN HDR 96POS PCB RA
09042327823
CONN DIN RCPT 32POS IN-LINE GOLD
09062486821
CONN DIN RCPT 48POS PNL MNT
XC5A3222ABYOMR
CONN DIN PLUG 32POS PCB RA
214836
DIN C 96POS F SLDR 4.0MM CL2
106740-4
CONN DIN PLUG 160POS PCB RA GOLD
09271326902
CONN DIN HDR 32POS PCB GOLD
09034962825
CONN DIN RCPT 96POS PCB

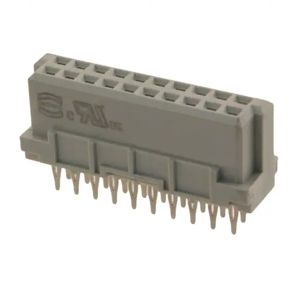

09242206870
CONN DIN RCPT 20POS PCB GOLD
09732966804
CONN DIN RCPT 96POS PCB RA GOLD
