Backplane Connectors - DIN 41612: High-Density Interconnect Solutions for Robust System Integration
Definition & Purpose
Backplane Connectors - DIN 41612 are standardized, high-density interconnect components designed for modular electronic systems requiring reliable signal and power transmission between printed circuit boards (PCBs). Compliant with the DIN 41612 standard (IEC 60603-2), these connectors feature a rectangular form factor, polarized mating interfaces, and multiple contact configurations to support applications demanding high pin counts, mechanical stability, and consistent electrical performance.
Key Types & Variations
1. By Orientation:
- Vertical (Type V): Perpendicular PCB mounting for space-efficient backplane architectures.
- Right-Angle (Type R): Parallel PCB alignment for streamlined horizontal stacking.
2. By Contact Pitch:
- Standard (2.54mm pitch): Balanced density and ease of soldering for industrial controls.
- Fine-Pitch (1.27mm): High-density layouts in telecom/datacom equipment.
3. By Contact Type:
- Solder Pin: Through-hole termination for robust mechanical bonds.
- Press-Fit: Tool-free installation for high-volume assembly.
4. Shielding Options:
- Unshielded (cost-effective for low-noise environments).
- Shielded (EMI protection in sensitive RF/military systems).
Selection Guidelines
- Current/Voltage Requirements: Match contact material (e.g., brass with gold plating for low-resistance power delivery) and pin count to load demands.
- Environmental Factors: Opt for IP-rated or ruggedized housings in harsh industrial/military settings.
- Mating Cycles: Prioritize connectors with 500 cycles for frequently swapped modules.
- Compliance: Verify IEC 60603-2 certification for interoperability.
Why DIN 41612?
These connectors remain a benchmark in legacy and modern systems from telecom switches to test instrumentation due to their proven durability, modular flexibility, and cost-efficient scalability. For OEMs, adherence to this standard simplifies backward compatibility while future-proofing designs.
Filter and sort
Categories
XC5E50812BYOMR
CONN DIN PLUG 50POS
XC5B-3221
CONN DIN RCPT 32POS PCB GOLD
86093487313755E1LF
CONN DIN HDR 48POS PCB RA GOLD
535032-9
CONN DIN RCPT 96POS PCB GOLD
09061486925222
CONN DIN HDR 48POS PCB RA GOLD

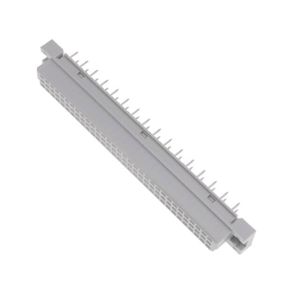

86094328114758V1LF
CONN DIN RCPT 96POS PCB GOLD

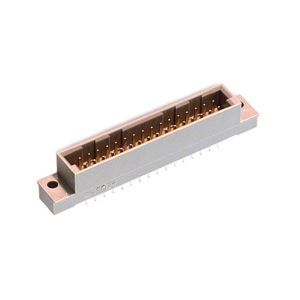

PCN10HB-32P-2.54DSA(72)
CONN DIN HDR 32POS PCB GOLD
09052482832
CONN DIN RCPT 48POS PCB GOLD
XC5A-2082-1
CONN DIN PLUG 20POS PCB RA GOLD
09058486831
CONN DIN RCPT 48POS PCB GOLD
09291305961
DIN-SIGNAL 3R030MP-3 9C1-S4-V3-N
09037326421
DIN-SIGNAL C032FS-13 0C1-2-COD
XC5B30313ABYOMR
CONN DIN RCPT 30POS PCB
2-166010-1
CONN DIN RCPT 48POS PCB GOLD
09037646850
DIN-SIGNAL C064FP-4 5C1-2-COD
XC5G6421ABYOMR
CONN DIN PLUG 64POS PCB
09022642850
CONN DIN RCPT 64POS PCB GOLD
09062326836
CONN DIN RCPT 48POS PCB RA GOLD
09060322941
CONN DIN HDR 48POS PCB GOLD
PCN10-64ACP-2.54DS(72)
CONN DIN HDR 96POS PCB RA GOLD
