Banana and Tip Connectors - Jacks, Plugs
Banana and Tip Connectors - Jacks, Plugs
Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories
72922-2
CONN TIP JACK QUICK CONNECT RED
6019
CONN TIP JACK SLDR EYELET RED
73093-5
CONN BANANA PLUG STACK SLDRLESS
CT3887-0
CAT IV 4MM SHTH J, PRESS FIT, 2M
105-0253-001
CONN TIP JACK SLDR EYELET BLACK
105-0202-200
CONN TIP JACK TURRET RED
BU-32614-8
CONN BANANA PLUG STACK SLDR GRAY
BU-P2143-0
CONN DBL BANANA JACK MIN TURRET
MDP-02
CONN DBL BAN PLG STACK SLDRLESS
CT2213-6
CONN BANANA JACK SOLDER BLUE
CT2230-2
CONN BANANA JACK THREADED RED
105-1043-001
CONN TIP JACK TURRET BLACK

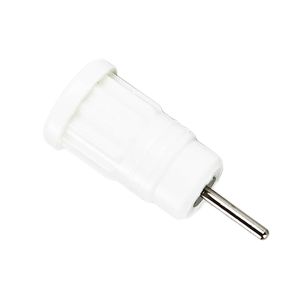

CT2912-9
CONN BANANA JACK SOLDER WHITE
6721-0
CONN BANANA PLUG STACK SLDR BLK
09-9201-1-03511
INSULATED PC JACKS
BU-P4773-2
CONN TIP JACK WIRE WRAP RED
M3497-98
CONN TIP JACK SOLDER BLACK
CT2240-5
CONN BANANA JACK SOLDER GREEN
73098-0
4MM/MNT SAFE JACK/SHEATH PLG/BLK
72925-2
CONN BANANA PLUG STACK MINI RED
