Definition:
Banana and Tip Connectors - Jacks, Plugs are specialized electrical connectors designed for secure, low-resistance connections in test and measurement, audio, and power distribution applications. These connectors feature a distinctive spring-loaded metal tip (banana plug) or a corresponding jack, ensuring quick, reliable mating and unmating. They are widely used in laboratories, audio systems, and industrial equipment for their durability and ease of use.
Types of Banana and Tip Connectors:
1. Banana Plugs: Single or stacked connectors with a spring-metal tip for high-current applications, commonly used in speaker systems and power supplies.
2. Banana Jacks: Receptacles designed to accept banana plugs, often found on multimeters, binding posts, and patch panels.
3. Tip Plugs & Jacks: Smaller, precision connectors for signal transmission in test leads and audio equipment.
4. Shrouded/Unshrouded Variants: Insulated (shrouded) versions for safety in high-voltage environments, while unshrouded types allow for compact stacking.
5. Right-Angle & Straight Designs: Flexible orientation options for space-constrained installations.
Buying Recommendations:
- Current Rating: Match the connector s current capacity (e.g., 15A+ for power applications) to prevent overheating.
- Insulation: Opt for shrouded connectors in high-voltage setups to avoid accidental contact.
- Compatibility: Ensure plug/jack pairing (e.g., 4mm standard for banana connectors) with existing equipment.
- Material: Choose gold-plated contacts for corrosion-resistant, low-resistance connections in precision instruments.
- Application-Specific Features: Select locking mechanisms or stackable designs for stability in dynamic environments.
Ideal for engineers, audiophiles, and technicians, Banana and Tip Connectors deliver robust performance where repeatable, high-fidelity connections are critical.
Filter and sort
Categories

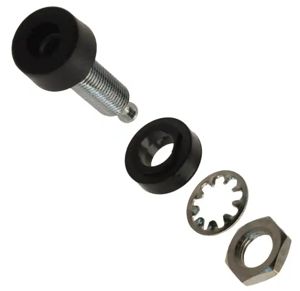

1581-0
CONN BANANA JACK TURRET BLACK
CT2230-4
CONN BANANA JACK THREADED YELLOW
CT3205
CONN BANANA PLUG SOLDERLESS 2PC
6073
CONN BANANA PLUG JUMBO SLDR LUG
4005-0
CONN BANANA JACK WIRE WRAP BLACK
BU-00242
CONN BANANA PLUG SOLDER LUG
1325-02
CONN BANANA PLUG STACK SLDRLESS
BU-00243-2
CONN BANANA PLUG SOLDERLESS RED

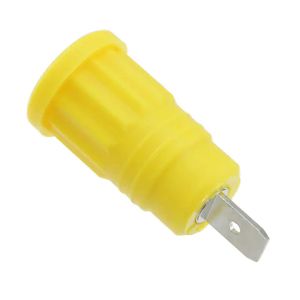

CT2911-4
CONN BANANA JACK QC YELLOW
09-9201-1-03519
INSULATED PC JACKS

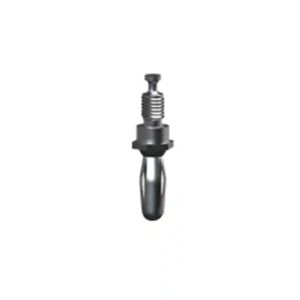

652
CONN BANANA PLUG THRD
CT2910-0
CONN BANANA JACK QC BLACK
CT4008-2
5KV, 4MM SHTH JACK, 4.8MM QUICK
122506A
CONN BANANA PLUG SOLDERLESS RED
215-311
BANANA PLUG; FOR SOCKET 4 MM ; 2
BU-P5168-0
CONN BANANA JACK BLACK
CT2224
CONN BANANA JACK THRD
CT2906-0
CONN BANANA JACK SOLDER BLACK

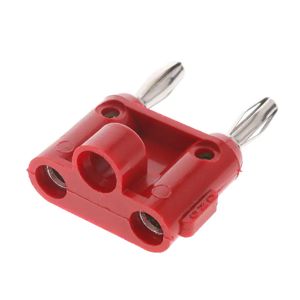

MDP-2#
CONN DBL BAN PLG STACK SLDRLESS
BU-3261410-4
CONN BANANA PLUG SOLDER YELLOW
