Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
SY55856UHG-TR
IC DELAY LINE 7TAP 350PS 32TQFP
SY89295UTI
IC DELAY LN 1024TAP PROG 32TQFP
DS1035Z-12/T&R
DELAY LINE 35TAP 12NS 8-SOIC
DS1021S-50/T&R
IC DEL LN 256TAP 137.5NS 16SOIC
DS1005S-150+T&R
IC DELAY LINE 5TAP 150NS 16SOIC
DS1135U-30
IC DELAY LINE 30NS 8UMAX
DS1100Z-25/T&R
IC DELAY LINE 5TAP 25NS 8SOIC
DS1135U-15+T&R
IC DELAY LINE 15NS 8UMAX
DS1005S-75+T&R
IC DELAY LINE 5TAP 75NS 16SOIC
SY89297UMG-TR
IC DELAY LINE 1024TAP PROG 24QFN

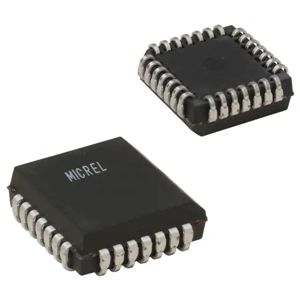

SY100E195JI
IC DELAY LINE 128TAP PROG 28PLCC
SY89296UTI-TR
IC DELAY LN 1024TAP PROG 32TQFP
DS1100LZ-20/T&R
IC DELAY LINE 5TAP 20NS 8SOIC
DS1013H-12
DS1013 3-IN-1 SILICON DELAY LINE
SY100E195JY
IC DELAY LINE 128TAP PROG 28PLCC
DS1005S-150+
IC DELAY LINE 5TAP 150NS 16SOIC

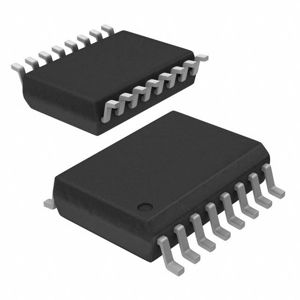

DS1013S-60+T&R
IC DELAY LINE 60NS 16SOIC
DS1010S-175
IC DELAY LINE 10TAP 175NS 16SOIC
DS1004Z-2+
IC DELAY LINE 5TAP 13NS 8SOIC
DS1100U-20+T
IC DELAY LINE 5TAP 20NS 8UMAX
