Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1100U-40/T&R
IC DELAY LINE 5TAP 40NS 8UMAX
DS1013M-12
DELAY LINE 3TAP 12NS MAX 8-DIP
DS1110S-300
IC DELAY LINE 10TAP 300NS 16SOIC
SY100E195JI-TR
IC DELAY LINE 128TAP PROG 28PLCC
DS1013M-75
IC DELAY LINE 75NS 8DIP
DS1005M-150
IC DELAY LINE 5TAP 150NS 8DIP
SY605JZ TR
IC DELAY LINE 255TAP PROG 28PLCC
DS1004Z-2/T&R
IC DELAY LINE 5TAP 13NS 8SOIC
DS1100LZ-125/T&R
IC DELAY LINE 5TAP 125NS 8SOIC
DS1040Z-A15
IC DELAY LINE 5TAP 15NS 8SOIC
DS1013S-30+
IC DELAY LINE 30NS 16SOIC
DS1013K-100
DS1013 3-IN-1 SILICON DELAY LINE
DS1010-500
IC DELAY LINE 10TAP 500NS 14DIP
DS1035Z-8/T&R
DELAY LINE 35TAP 8NS 8-SOIC

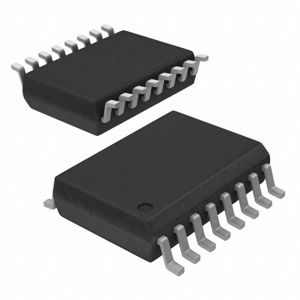

DS1021S-25+T&R
IC DEL LN 256TAP 73.75NS 16SOIC
DS1013S-15+T&R
IC DELAY LINE 15NS 16SOIC
DS1135U-30+T&R
IC DELAY LINE 30NS 8UMAX
DS1013S-80+
IC DELAY LINE 80NS 16SOIC
DS1135Z-12+T&R
IC DELAY LINE 12NS 8SOIC
SY55856UHI-TR
IC DELAY LINE 7TAP 350PS 32TQFP
