Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1110LE-50+
IC DELAY LINE 10TAP 14-TSSOP
DS1100U-150/T&R
IC DELAY LINE 5TAP 150NS 8UMAX
DS1033Z-12/T&R
IC DELAY LINE 12NS 8SOIC
SY100EP195VTI-TR
IC DELAY LN 1024TAP PROG 32TQFP
SY605JZ
IC DELAY LINE 255TAP PROG 28PLCC
DS1021S-25/T&R
IC DEL LN 256TAP 73.75NS 16SOIC
DS1004Z-2+T
IC DELAY LINE 5TAP 13NS 8SOIC
DS1013G-20
IC DELAY LINE 20NS 14DIP

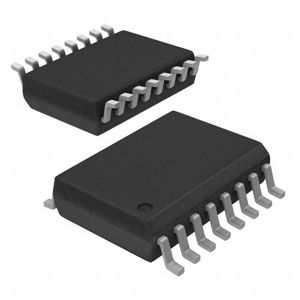

DS1023S-25/T&R
IC DEL LN 256TAP 63.75NS 16SOIC
DS1013S-12
IC DELAY LINE 12NS 16SOIC
DS1005S-150
IC DELAY LINE 5TAP 150NS 16SOIC
DS1004Z-4/T&R
IC DELAY LINE 5TAP 21NS 8SOIC
DS1020-200
DELAY PROG 8-BIT 2.00NS 16-DIP
DS1033Z-20/T&R
IC DELAY LINE 20NS 8SOIC
DS1040Z-D70
IC DELAY LINE 5TAP 70NS 8SOIC
DS1033Z-8+T
IC DELAY LINE 8NS 8SOIC
DS1004Z-4+
IC DELAY LINE 5TAP 21NS 8SOIC
DS1135U-15+
IC DELAY LINE 15NS 8UMAX
DS1010-350
IC DELAY LINE 10TAP 350NS 14DIP

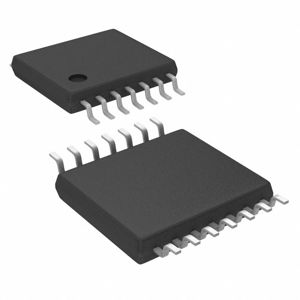

DS1110LE-100/T&R
