FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

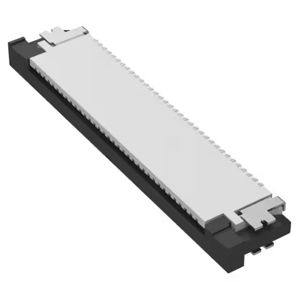

CF20341U0R0-NH
CF20 SERIES 0.50MM(.020") ZIF SI

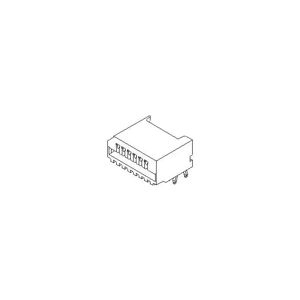

52044-2545
25KT 1.25MM FFC CONN ASSY

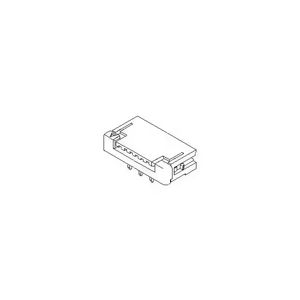

52089-0519
1.0 FPC ZIF RA HSG ASSY 5CKT

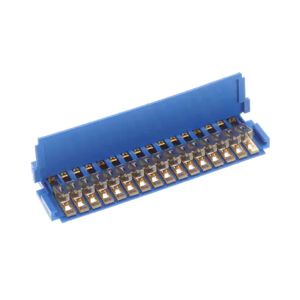

65801-045LF
CONN FFC FPC RCPT 16POS 2.54MM

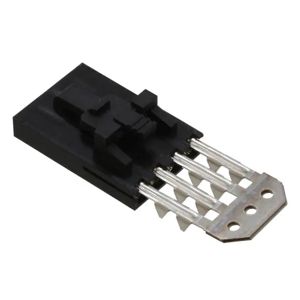

0015388040
CONN CIC FFC RCPT 4POS 2.54MM

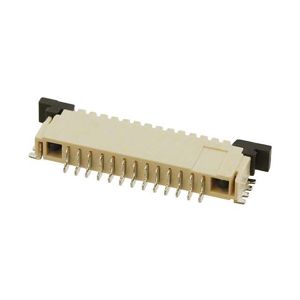

1-84953-3
CONN FPC TOP 13POS 1.00MM R/A

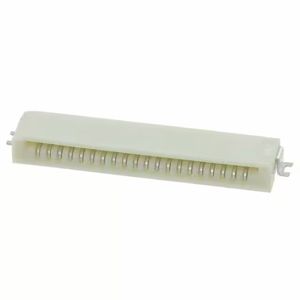

0528522070
CONN FFC BOTTOM 20POS 1.00MM R/A

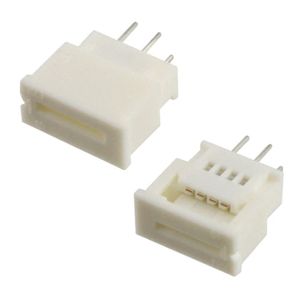

0039532045
CONN FFC VERT 4POS 1.25MM PCB

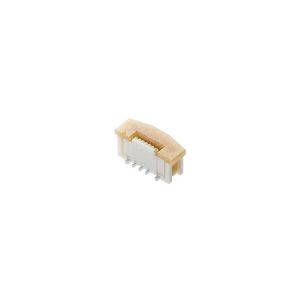

52559-3633
0.5 FPC ZIF HSG ASSY SMT 36CKT E
68712014022
CONN FPC TOP 20POS 0.50MM R/A

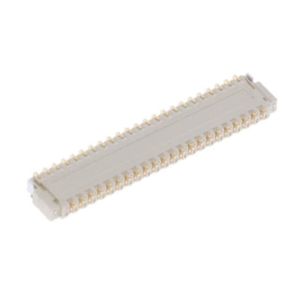

4-2328724-5
0.3MM PITCH FRONT FLIP FPC, 45PO

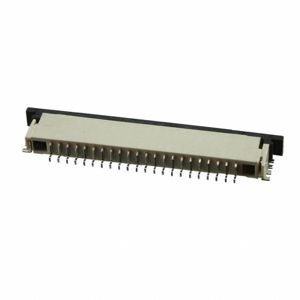

2-84952-2
CONN FPC BOTTOM 22POS 1.00MM R/A

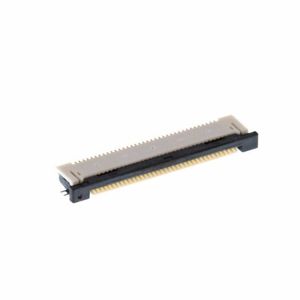

0541323662
CONN FFC BOTTOM 36POS 0.50MM R/A

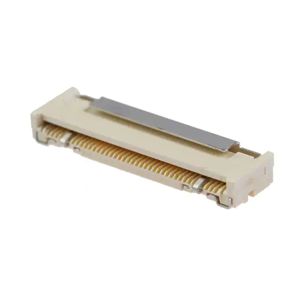

IMSA-11501S-40A-GFN1
CONN FFC R/A .5MM 40POS

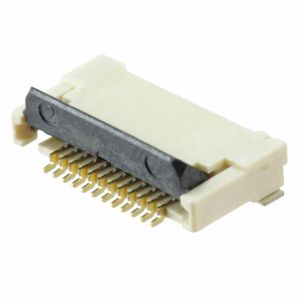

XF2M-1215-1A
CONN FPC 12POS 0.50MM R/A

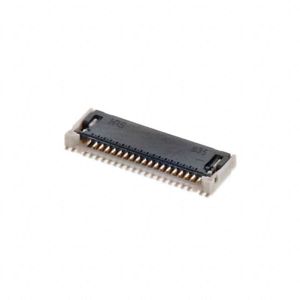

FH62-55S-0.25SHW(99)
CONN FPC/FFC 0.25MM R/A SMD 55PO

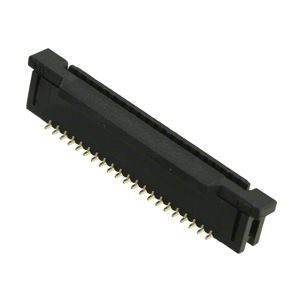

2-1734248-1
CONN FPC VERT 21POS 1.00MM SMD

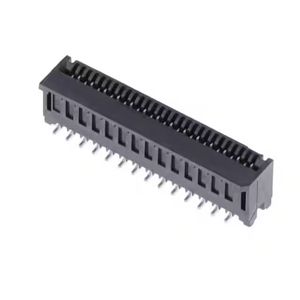

0781272810
0.5 FPC CONN. ZIF ST EMB TP PKG

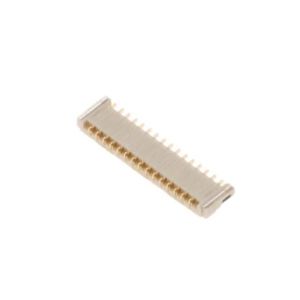

046844731002846+
0.3MM PITCH - 31 POS - RT ANGLE

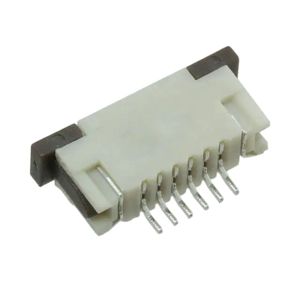

68611414122
CONN FPC TOP 14POS 1.00MM R/A
