FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

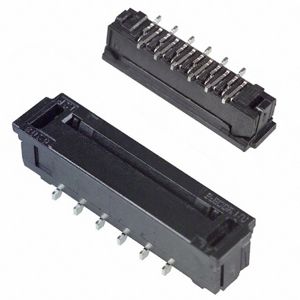

006208512210000+
CONN FFC FPC VERT 12POS 1MM SMD

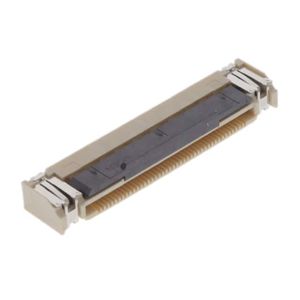

046810640003846+
0.5MM PITCH - 40 POS - RT ANGLE

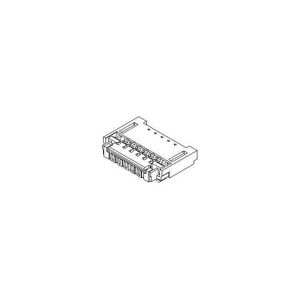

500797-1194
03 FPC E/O 11 CKT

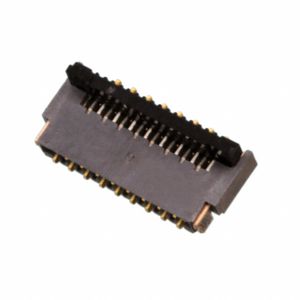

FH35C-17S-0.3SHW(50)
CONN FPC 17POS 0.30MM R/A

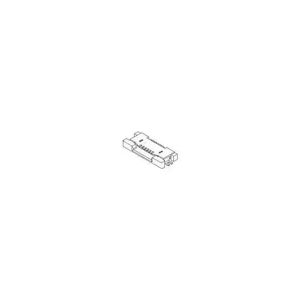

54550-2671
0.5 FPC ZIF HSG ASSY 26CKT EMBST

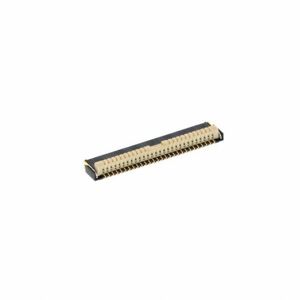

AYF532835A
CONN FFC/FPC 28POS 0.5MM SMD R/A

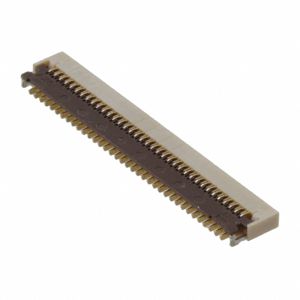

FH43BW-71S-0.2SHW(10)
CONN FPC 71POS .2MM

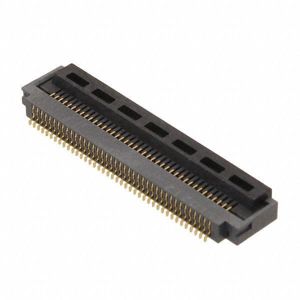

FH41-40S-0.5SH(99)
CONN FFC BOTTOM 40POS 0.50MM R/A

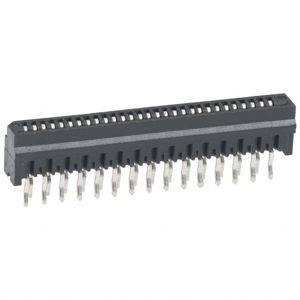

HLW29S-2C7LF
CONN FFC FPC VERT 29POS 1MM PCB

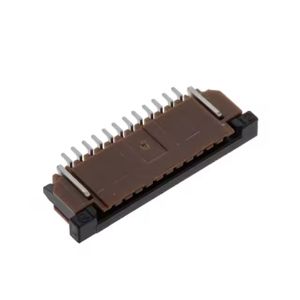

SFW12R-1STE9LF
CONN FFC BOTTOM 12POS 1.00MM R/A

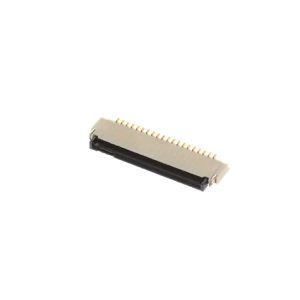

046809620210846+
0.5MM PITCH - 20 POS - RT ANGLE

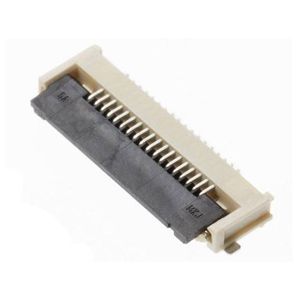

505278-1733
0.5 FFC ZIF BTM CONT EMBT PKG 17

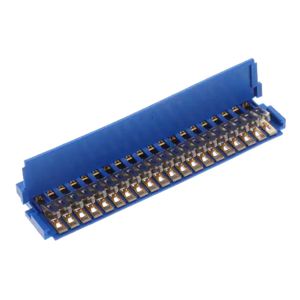

65801-049LF
CONN FFC FPC RCPT 20POS 2.54MM

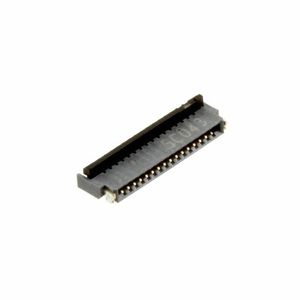

FH34SRJ-16S-0.5SH(50)
CONN FPC/FFC 16POS .5MM

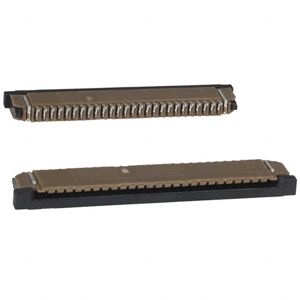

SFW26R-2STE1LF
CONN FFC FPC TOP 26POS 1MM R/A

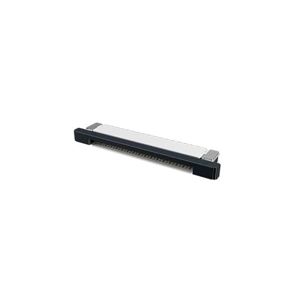

F52R-1A7H1-11028
FLEX CONNECTOR, 1.00MM PITCH, HE

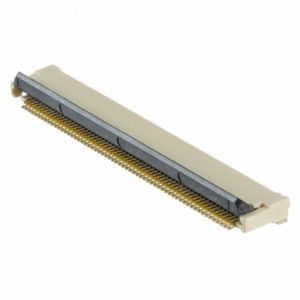

XF2M-6015-1AH
CONN FPC 60POS 0.50MM R/A

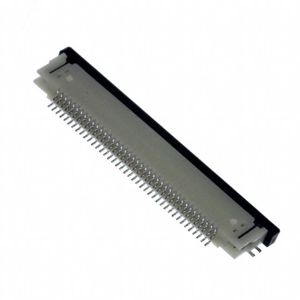

40FLZ-RSM2-R-TB(LF)(SN)
CONN FFC BOTTOM 40POS 0.50MM R/A

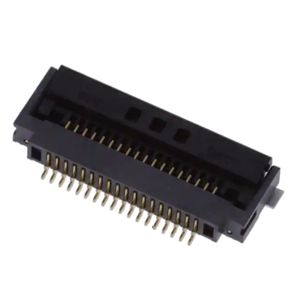

FH52E-18S-0.5SH(99)
CONN FFC 18POS .5MM

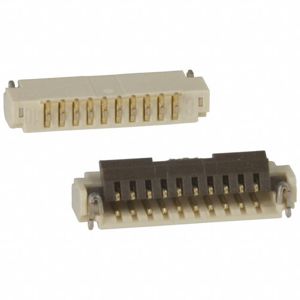

FH33-10S-0.5SH(99)
CONN FFC BOTTOM 10POS 0.50MM R/A
