PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
TLV431ACLP
IC VREF SHUNT ADJ 1% TO92-3
ISL21009CFB825Z
IC VREF SERIES 0.08% 8SOIC
MAX6133AASA25+T
IC VREF SERIES 0.04% 8SOIC
LM4132DQ1MFT2.5
IC VREF SERIES 0.4% SOT23-5
LT1236AIS8-10#TRPBF
IC VREF SERIES 0.05% 8SOIC
TL432LIBEDBZRQ1
IC VREF SHUNT ADJ 0.5% SOT23-3
TL4050C25IDCKT
IC VREF SHUNT 0.5% SC70-5
NJM2380AF-TE1
IC VREF SHUNT ADJ 1% SOT23-5
TL431AILPE3
IC VREF SHUNT ADJ 1% TO92-3
LT1790BCS6-1.25#TRPBF
IC VREF SERIES 0.1% TSOT23-6
REF3112AIDBZT
IC VREF SERIES 0.2% SOT23-3
LM4041CEM3-1.2/NOPB
IC VREF SHUNT 0.5% SOT23-3

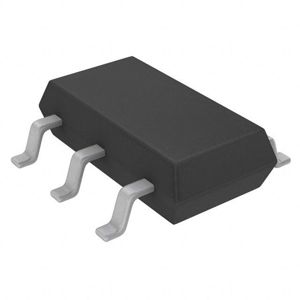

LT6654BHS6-4.096#TRMPBF
IC VREF SERIES 0.1% TSOT23-6

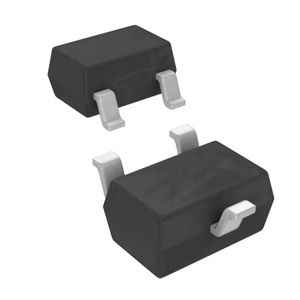

LM4040AELT-3.0
PRECISION MICROPOWER SHUNT VOLTA
LM4040CIM3X-5.0
LM4040-N 100-PPM/C PRECISION MIC
LM4132AMF-3.3/NOPB
IC VREF SERIES 0.05% SOT23-5
LM285BYMX-2.5/NOPB
IC VREF SHUNT 1.5% 8SOIC
AS431IAZTR-G1
IC VREF SHUNT ADJ 0.5% TO92
ADR293GR-REEL7
IC VREF PREC 5V 5MA OUT 8-SOIC
TLV431BSN1T1G
IC VREF SHUNT ADJ 0.5% SOT23-3
