PMIC - Voltage Reference
PMIC - Voltage Reference: Precision Power Management Components
Definition & Functionality
PMIC - Voltage References are specialized integrated circuits (ICs) within the Power Management IC (PMIC) category, designed to generate a stable, precise DC voltage regardless of variations in input voltage, load conditions, or temperature. These components serve as critical "voltage standards" for analog and mixed-signal circuits, ensuring accuracy in applications like data converters, sensors, and power supplies.
Types & Key Variations
1. Series Voltage References: Provide a fixed output with low dropout voltage, ideal for battery-powered devices.
2. Shunt Voltage References: Operate like precision Zener diodes, suited for high-accuracy, low-current systems.
3. Adjustable Voltage References: Allow output customization via external resistors, offering design flexibility.
4. Bandgap References: Leverage semiconductor bandgap properties for ultra-stable outputs across temperature ranges.
5. Buried Zener References: Deliver the highest precision (e.g., 0.04%) for metrology or medical equipment.
Selection Guidelines
- Accuracy & Tolerance: Prioritize < 1% tolerance for precision systems (e.g., ADCs).
- Temperature Coefficient (TempCo): Choose <10ppm/ C for environments with thermal fluctuations.
- Noise Performance: Opt for low-noise (<10 Vpp) designs in sensitive analog circuits.
- Package & Power: Match SOT-23 (portable) or SOIC (industrial) packages to your PCB constraints.
- Long-Term Stability: Critical for automotive/industrial apps; verify datasheet aging specs (e.g., 50ppm/1000hr).
Why It Matters
Voltage References are the unsung heroes of reliable electronics, minimizing drift and noise in power rails. From IoT sensor calibration to aerospace systems, selecting the right type ensures optimal performance and longevity. Partner with trusted suppliers (e.g., Texas Instruments, Analog Devices) to source certified components with traceable quality data.
Filter and sort
Categories
TLVH431QPK
IC VREF SHUNT ADJ 1.5% SOT89-3
LM285AM-2.5
VOLTAGE REFERENCE
LM4040D50ILPRE3
IC VREF SHUNT 1% TO92-3
LM4040D10IDBZT
IC VREF SHUNT 1% SOT23-3
ADR06BKS-R2
IC VREF SERIES PREC 3V SC-70-5
AD586JR
IC VREF SERIES 0.4% 8SOIC
LM4040DIZ-10.0
TWO TERMINAL VOLTAGE REFERENCE,
TL431BMSDT,215
IC VREF SHUNT ADJ 0.5% TO236AB
LT6654BHLS8-2.5#PBF
IC VREF SERIES 0.1% 8CLCC
TSM101AIDT
IC VREF SERIES 1% 8SO
LM4040C50ILPR
IC VREF SHUNT 0.5% TO92-3
ADR439BR
IC VREF SERIES 4.5V 8-SOIC
REF192GSZ
IC VREF SERIES 0.4% 8SOIC
LM4040DIM3X-6.0/NOPB
IC VREF SHUNT 1% SOT23-3
LM4040A20IDBZR
IC VREF SHUNT 0.1% SOT23-3
MAX6241BCPA+
IC VREF SERIES 0.1% 8DIP
LM4132CMF-3.3/NOPB
IC VREF SERIES 0.2% SOT23-5
LM4040A25IDBZT
IC VREF SHUNT 0.1% SOT23-3
MAX6037AAUK21+T
IC VREF SERIES 2.048V SOT23-5

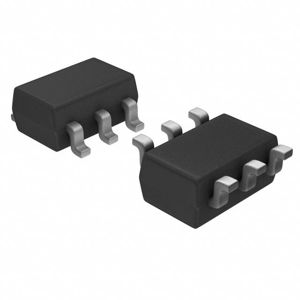

MCP1502T-18E/CHY
IC 7 PPM 0.1% VOLTAGE REFERENCE
