Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) - Category Overview
1. Definition:
Rectangular Connectors - Arrays, Edge Type, and Mezzanine (Board to Board) are specialized interconnect solutions designed for high-density, reliable connections between printed circuit boards (PCBs) or modular electronic systems. These connectors feature rectangular housings with precise alignment mechanisms, ensuring secure mating for signal, power, and data transmission in compact or complex assemblies.
- Arrays: Multi-pin configurations arranged in grid patterns for high-speed data transfer and space efficiency.
- Edge Type: Connectors mounted along PCB edges, enabling direct board-to-board or board-to-cable interfacing.
- Mezzanine (Board to Board): Stackable connectors that vertically link parallel PCBs with low-profile designs, ideal for layered architectures.
2. Product Types:
This category includes:
- Header and Receptacle Pairs: Gender-specific pairs for permanent PCB mounting.
- Shrouded/Unshrouded Connectors: Shrouded variants offer mechanical protection, while unshrouded types suit tight spaces.
- High-Speed Mezzanine Connectors: Optimized for differential signaling (e.g., PCIe, SATA).
- Press-Fit/Surface-Mount (SMT) Options: Flexible termination styles for automated assembly.
- Hybrid Connectors: Combine power and signal contacts in one housing.
3. Purchasing Recommendations:
- Pitch Size: Select 0.5mm 2.54mm pitch based on current load and space constraints (smaller pitches for high-density designs).
- Current Rating: Verify ampacity (e.g., 1A 5A per contact) for power applications.
- Material: High-temperature plastics (PBT, LCP) or metal housings for rugged environments.
- Mating Cycles: Choose connectors rated for 500+ cycles if frequent disconnection is expected.
- Compliance: Ensure adherence to standards like IEC, UL, or MIL-SPEC for industrial/military use.
Ideal for embedded systems, telecom hardware, and IoT devices, these connectors balance density, durability, and signal integrity. Partner with trusted manufacturers to avoid counterfeit components in critical applications.
Filter and sort
Categories

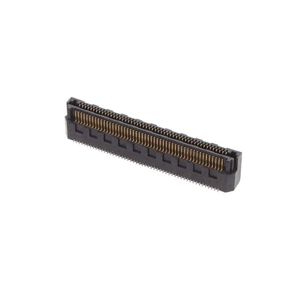

LSS-150-02-L-DV-A
CONN SELF-MATE 100POS SMD GOLD
SEAM-20-03.0-L-08-2-A-K-TR
CONN HD ARRAY PLUG 160P SMD GOLD
SEAF-50-05.0-S-04-1-A-K-TR
CONN HD ARRAY RCPT 200P SMD GOLD

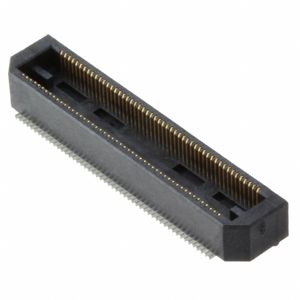

BTH-050-01-L-D-A
CONN HDR 100POS SMD GOLD
AXE6E2026
CONN HDR 20POS SMD GOLD
LSHM-110-03.0-L-DV-A-N-K-TR
CONN SELF-MATE 20POS SMD GOLD
DF37NC-30DS-0.4V(51)
CONN RCPT 30POS SMD GOLD
0533072871
CONN HDR 28POS SMD TIN
5052700612
CONN RCPT 6POS SMD GOLD
0536470274
CONN PLUG 20POS SMD GOLD
QSH-060-01-F-D-A-K
CONN RCPT 120POS SMD GOLD
ERM5-010-02.0-L-DV-TR
CONN HDR 20POS SMD GOLD

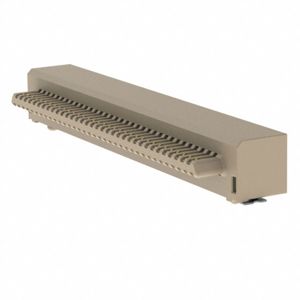

10138400-111169LF
CONN PLUG 69POS R/A SMD GOLD
BBAF-060G1125NDLI-B
PLUG BTB 0.5MM PITCH - 60 POS SM
DF40GL-44DS-0.4V(58)
CONN RCPT 44POS SMD GOLD
SEAM-20-02.0-SM-04-2-A-K-TR
CONN HD ARRAY PLUG 80P SMD GOLD
LS2-115-01-S-D
CONN SELF-MATE 30POS VERT GOLD
ERM8-049-05.0-L-DV-TR
CONN HDR 98POS SMD GOLD
BTE-060-02-H-D-A-K
CONN HDR 120POS SMD GOLD
AX01R040VADBR500
CONN RIGID SIDE STR 40 POS
