Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) - Category Overview
1. Definition:
Rectangular Connectors - Arrays, Edge Type, and Mezzanine (Board to Board) are specialized interconnect solutions designed for high-density, reliable connections between printed circuit boards (PCBs) or modular electronic systems. These connectors feature rectangular housings with precise alignment mechanisms, ensuring secure mating for signal, power, and data transmission in compact or complex assemblies.
- Arrays: Multi-pin configurations arranged in grid patterns for high-speed data transfer and space efficiency.
- Edge Type: Connectors mounted along PCB edges, enabling direct board-to-board or board-to-cable interfacing.
- Mezzanine (Board to Board): Stackable connectors that vertically link parallel PCBs with low-profile designs, ideal for layered architectures.
2. Product Types:
This category includes:
- Header and Receptacle Pairs: Gender-specific pairs for permanent PCB mounting.
- Shrouded/Unshrouded Connectors: Shrouded variants offer mechanical protection, while unshrouded types suit tight spaces.
- High-Speed Mezzanine Connectors: Optimized for differential signaling (e.g., PCIe, SATA).
- Press-Fit/Surface-Mount (SMT) Options: Flexible termination styles for automated assembly.
- Hybrid Connectors: Combine power and signal contacts in one housing.
3. Purchasing Recommendations:
- Pitch Size: Select 0.5mm 2.54mm pitch based on current load and space constraints (smaller pitches for high-density designs).
- Current Rating: Verify ampacity (e.g., 1A 5A per contact) for power applications.
- Material: High-temperature plastics (PBT, LCP) or metal housings for rugged environments.
- Mating Cycles: Choose connectors rated for 500+ cycles if frequent disconnection is expected.
- Compliance: Ensure adherence to standards like IEC, UL, or MIL-SPEC for industrial/military use.
Ideal for embedded systems, telecom hardware, and IoT devices, these connectors balance density, durability, and signal integrity. Partner with trusted manufacturers to avoid counterfeit components in critical applications.
Filter and sort
Categories
SEAF-20-06.5-L-06-2-A-K-TR
CONN HD ARRAY RCPT 120P SMD GOLD

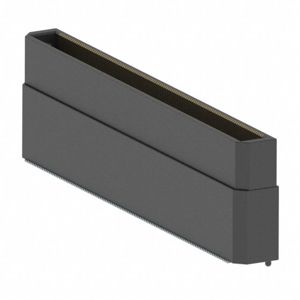

BTH-120-05-L-D-A
CONN HDR 240POS SMD GOLD
AXK5S40047YA
CONN SOCKET 40POS SMD GOLD
205061020053856+
BOARD TO BOARD
BTS-050-01-L-D-A-K-TR
CONN SOCKET 100POS SMD GOLD
FX8C-120P-SV4(92)
CONN HDR 120POS SMD GOLD
0529010774
CONN RCPT 70POS SMD GOLD
QSE-040-01-F-D-A-TR
CONN RCPT 80POS SMD GOLD
FX6-100P-0.8SV(91)
CONN HDR 100POS SMD GOLD
AXT380254
CONN SOCKET 80POS SMD GOLD
5010170248
CONN PLUG 24POS SMD GOLD
QTH-090-03-L-D-A
CONN HDR 180POS SMD GOLD
BM20B(0.8)-10DS-0.4V(53)
CONN RCPT 10POS SMD GOLD
QFSS-026-04.25-L-D-A-P-TR
.635MM DOUBLE ROW SHIELDED TERMI
0714393464
CONN RCPT 64POS SMD GOLD
ERM8-013-05.0-S-DV-L-K-TR
CONN HDR 26POS SMD GOLD
ASP-134602-01
CONN ARRAY PLUG 400POS SMD GOLD
54722-0207
0.50MM PITCH SLIMSTACK RECEPTACL
SEAF-50-01-L-10-1-RA-GP-K-TR
CONN HD ARRAY RCPT 500P R/A SMD
2343571-1
CONN RCPT 124POS R/A SMD GOLD
