Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) - Category Overview
1. Definition:
Rectangular Connectors - Arrays, Edge Type, and Mezzanine (Board to Board) are specialized interconnect solutions designed for high-density, reliable connections between printed circuit boards (PCBs) or modular electronic systems. These connectors feature rectangular housings with precise alignment mechanisms, ensuring secure mating for signal, power, and data transmission in compact or complex assemblies.
- Arrays: Multi-pin configurations arranged in grid patterns for high-speed data transfer and space efficiency.
- Edge Type: Connectors mounted along PCB edges, enabling direct board-to-board or board-to-cable interfacing.
- Mezzanine (Board to Board): Stackable connectors that vertically link parallel PCBs with low-profile designs, ideal for layered architectures.
2. Product Types:
This category includes:
- Header and Receptacle Pairs: Gender-specific pairs for permanent PCB mounting.
- Shrouded/Unshrouded Connectors: Shrouded variants offer mechanical protection, while unshrouded types suit tight spaces.
- High-Speed Mezzanine Connectors: Optimized for differential signaling (e.g., PCIe, SATA).
- Press-Fit/Surface-Mount (SMT) Options: Flexible termination styles for automated assembly.
- Hybrid Connectors: Combine power and signal contacts in one housing.
3. Purchasing Recommendations:
- Pitch Size: Select 0.5mm 2.54mm pitch based on current load and space constraints (smaller pitches for high-density designs).
- Current Rating: Verify ampacity (e.g., 1A 5A per contact) for power applications.
- Material: High-temperature plastics (PBT, LCP) or metal housings for rugged environments.
- Mating Cycles: Choose connectors rated for 500+ cycles if frequent disconnection is expected.
- Compliance: Ensure adherence to standards like IEC, UL, or MIL-SPEC for industrial/military use.
Ideal for embedded systems, telecom hardware, and IoT devices, these connectors balance density, durability, and signal integrity. Partner with trusted manufacturers to avoid counterfeit components in critical applications.
Filter and sort
Categories

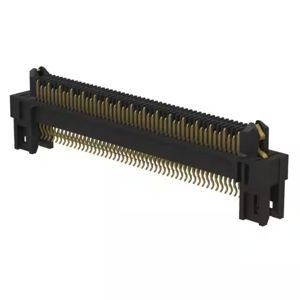

ERM8-049-01-S-D-EM2-DS-L-TR
CONN DIFF ARRAY PLUG 98P EDGE MT
SEAM-15-09.0-S-10-2-A-K-TR
CONN HD ARRAY PLUG 150P SMD GOLD
5035521480
CONN PLUG 14POS SMD GOLD
WR-40PB-HF-HD-A1E
CONN PLUG 40POS R/A SMD GOLD

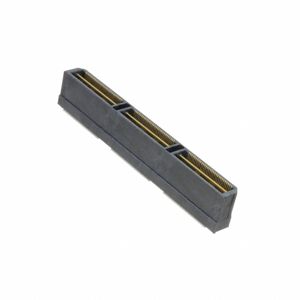

QTH-090-03-L-D-A-TR
CONN HDR 180POS SMD GOLD

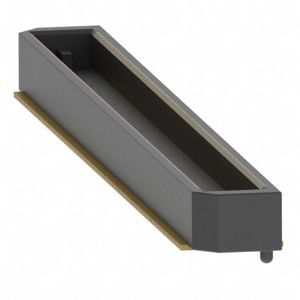

BTH-120-01-H-D-A
CONN HDR 240POS SMD GOLD

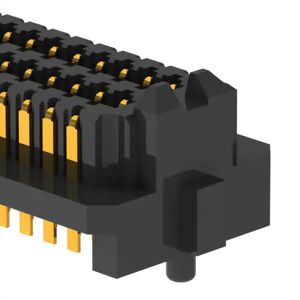

SEAM-40-02.0-S-06-2-A-K-TR
CONN HD ARRAY PLUG 240P SMD GOLD

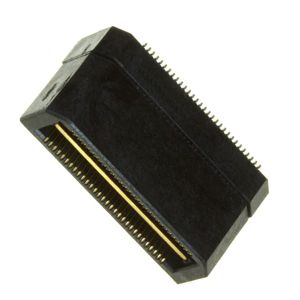

QTH-030-03-F-D-A-K
CONN HDR 60POS SMD GOLD

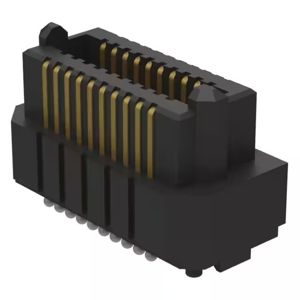

ADM6-10-03.5-L-4-2-A-TR
CONN 0.635MM HDR 40POS SMD

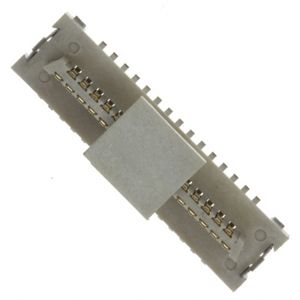

91911-31331LF
CONN HDR 31POS SMD GOLD

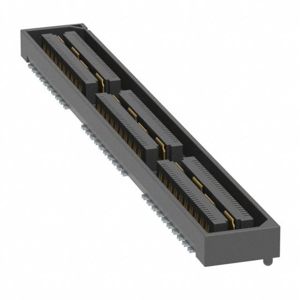

QSH-060-01-C-D-DP-TR
CONN DIFF ARRAY RCPT 120POS SMD
ERF8-025-01-S-D-RA-TR
CONN SOCKET 50POS R/A SMD GOLD
1658015-4
CONN PLUG 160POS SMD GOLD
BM23FR0.8-10DS-0.35V(51)
CONN RCPT 10POS SMD GOLD
6123000-3
CONN RCPT 80POS SMD GOLD
ASP-103612-01
CONN ARRAY RCPT 114POS SMD GOLD
SEAF-50-05.0-L-10-2-A-PP-K-TR
CONN HD ARRAY RCPT 500P SMD GOLD

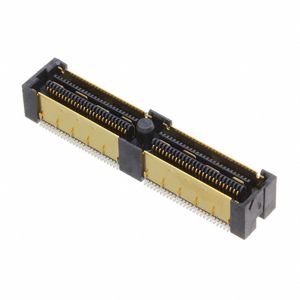

QFSS-052-01-L-D-A
.635MM DOUBLE ROW SHIELDED TERMI
AXG7500J7A
CONN SOCKET 50POS SMD GOLD

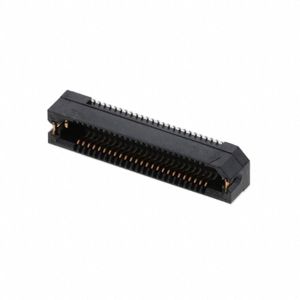

ERF8-025-05.0-S-DV-L-K-TR
CONN SOCKET 50POS SMD GOLD
