Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
814-22-050-30-009101
CONN SPRING PISTON 50POS SMD
823-22-006-10-004101
CONN SPRING PISTON 6POS PCB

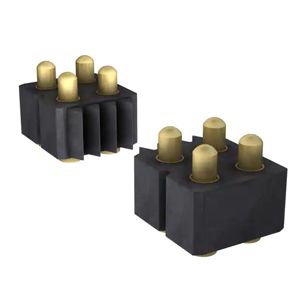

813-SS-012-30-026101
CONN SPRING PISTON 12POS SMD
821-22-059-10-004101
CONN SPRING PISTON 59POS PCB

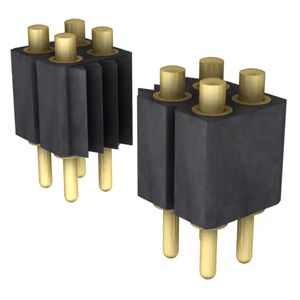

813-S1-068-10-014101
CONN SPRING PISTON 68POS PCB
856-10-010-20-001000
CONN SPRING TARGET 10POS R/A PCB
813-22-054-30-000101
CONN SPRING PISTON 54POS SMD

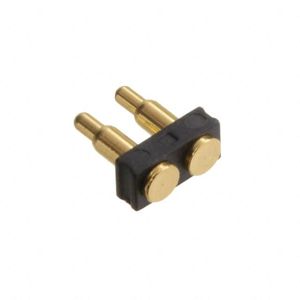

PH1-3B-02-MVF-5375
CONN SPRING PISTON 2POS SMD
816-22-004-10-002101
CONN SPRING PISTON 4POS PCB

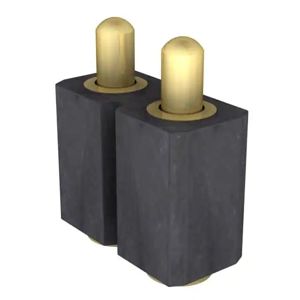

811-SS-002-30-682101-CLIP
CONN SPRING PISTON 2POS SMD, HIG
821-22-011-10-000101
CONN SPRING PISTON 11POS PCB
823-S1-012-30-013191
CONN SPRING PISTON 12POS SMD

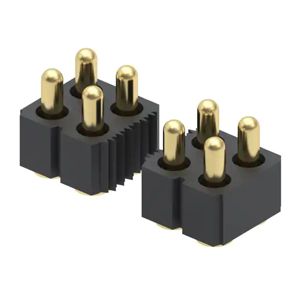

813-22-062-30-003101
CONN SPRING PISTON 62POS SMD
821-22-051-10-002101
CONN SPRING PISTON 51POS PCB
832-10-020-10-003000
CONN SPRING TARGET 20POS PCB
319-10-164-00-005000
CONN SPRING TARGET 64POS PCB

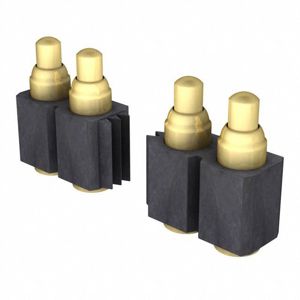

821-S1-010-30-015101
CONN SPRING PISTON 10POS SMD
814-22-070-30-009101
CONN SPRING PISTON 70POS SMD
813-SS-008-30-001191
CONN SPRING PISTON 8POS SMD
802-10-004-30-507191
CONN SPRING TARGET 4POS SMD
