Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
823-22-042-10-000101
CONN SPRING PISTON 42POS PCB

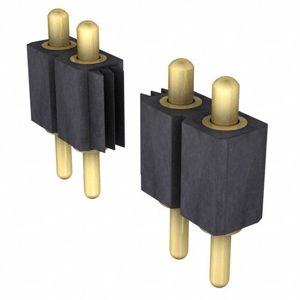

811-S1-042-10-017101
CONN SPRING PISTON 42POS PCB
811-SS-004-30-677101-CLIP
CONN SPRING PISTON 4POS SMD, HIG

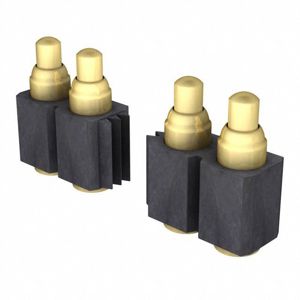

821-S1-006-30-012101
CONN SPRING PISTON 6POS SMD

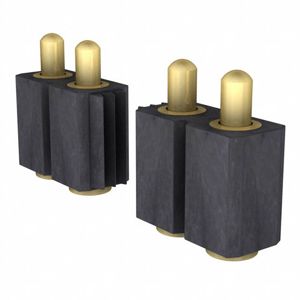

811-S1-005-30-015191
CONN SPRING PISTON 5POS SMD

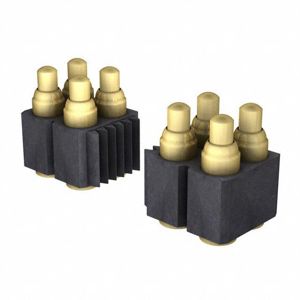

823-S1-016-30-015101
CONN SPRING PISTON 16POS SMD

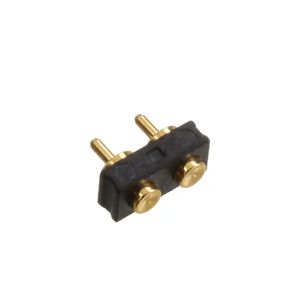

PH1-3F-02-FVP-24415-C1
CONN PAD FOR SPRING PINS 1X2
813-SS-036-10-474101
CONN SPRING PISTON 36POS PCB
825-22-005-10-001101
CONN SPRING PISTON 5POS PCB
813-22-058-30-002101
CONN SPRING PISTON 58POS SMD
811-SS-009-30-007191
CONN SPRING PISTON 9POS SMD
009155004003016
CONN SPRING BATTERY 4POS SMD
2199055-2
CONN SPRING MOD 10POS SMD
814-22-012-30-002101
CONN SPRING PISTON 12POS SMD

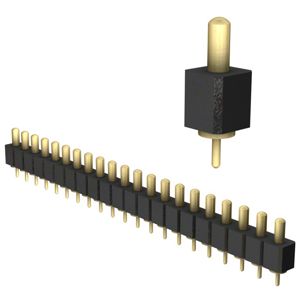

821-22-021-10-004101
CONN SPRING PISTON 21POS PCB
854-22-002-10-001101
CONN SPRING PISTON 2POS PCB
812-22-044-30-000101
CONN SPRING PISTON 44POS SMD
812-22-012-30-002101
CONN SPRING PISTON 12POS SMD
811-22-047-30-001101
CONN SPRING PISTON 47POS SMD
813-SS-004-30-677101-CLIP
CONN SPRING PISTON 4POS SMD, HIG
