Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories
823-22-022-10-001101
CONN SPRING PISTON 22POS PCB
814-22-052-30-001101
CONN SPRING PISTON 52POS SMD

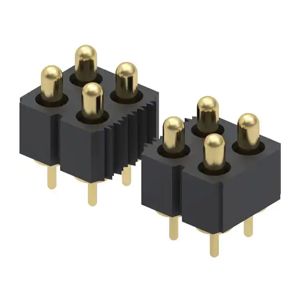

823-22-066-10-002101
CONN SPRING PISTON 66POS PCB
821-22-040-10-000101
CONN SPRING PISTON 40POS PCB

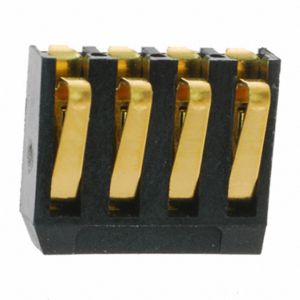

70AAJ-4-M0
CONN SPRING MOD MALE 4POS SMD
8PM-11-0004-02-260
CONN SPRING PISTON 4POS R/A SMD
811-S1-050-10-015101
CONN SPRING PISTON 50POS PCB
823-22-004-10-003101
CONN SPRING PISTON 4POS PCB
821-22-049-10-002101
CONN SPRING PISTON 49POS PCB

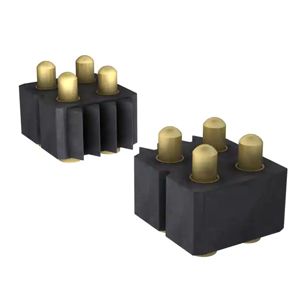

813-S1-020-30-014101
CONN SPRING PISTON 20POS SMD
811-SS-004-30-006191
CONN SPRING PISTON 4POS SMD
811-22-015-30-000101
CONN SPRING PISTON 15POS SMD
813-SS-006-30-006101
CONN SPRING PISTON 6POS SMD
813-SS-012-30-007191
CONN SPRING PISTON 12POS SMD
811-22-050-30-001101
CONN SPRING PISTON 50POS SMD
813-SS-006-30-027101
CONN SPRING PISTON 6POS SMD
821-S1-010-30-014191
CONN SPRING PISTON 10POS SMD
854-22-008-10-003101
CONN SPRING PISTON 8POS SLD PCB

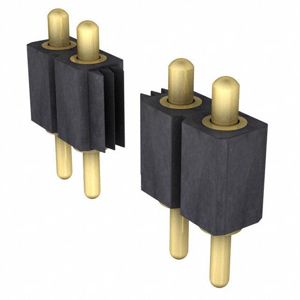

811-S1-017-10-016101
CONN SPRING PISTON 17POS PCB
814-22-034-30-009101
CONN SPRING PISTON 34POS SMD
