Rectangular Connectors - Spring Loaded
Rectangular Connectors - Spring Loaded: Category Overview
1. Definition:
Rectangular Connectors - Spring Loaded are specialized interconnect components designed to ensure reliable electrical connections in applications requiring consistent contact pressure and vibration resistance. These connectors feature spring-loaded contact mechanisms that compensate for mating surface variations, thermal expansion, or mechanical stress, maintaining stable conductivity in dynamic environments.
2. Product Types & Applications:
This category includes:
- Board-to-Board Spring Loaded Connectors: Used in high-density PCB assemblies where shock absorption is critical (e.g., automotive control modules).
- Wire-to-Board Spring Connectors: Enable secure connections in industrial automation equipment subject to constant movement.
- High-Current Spring Contacts: Ideal for power distribution systems needing durable, low-resistance interfaces.
- EMI-Shielded Rectangular Connectors: Deployed in aerospace/military systems to combine mechanical resilience with signal integrity.
3. Purchasing Recommendations:
- Contact Force & Current Rating: Verify spring pressure (e.g., 50 300g per contact) aligns with current load (e.g., 1A 20A) to prevent arcing.
- Material Selection: Opt for beryllium copper springs with gold plating for corrosion resistance in harsh environments.
- Compliance Standards: Prioritize UL/IEC 60664-certified designs for high-voltage insulation.
- Mating Cycles: For frequent connections (e.g., test equipment), choose models rated for 10,000+ cycles.
Why Choose Spring Loaded Rectangular Connectors?
These connectors solve challenges in vibration-prone or thermally unstable systems, reducing maintenance costs versus rigid alternatives. Their adaptive design ensures long-term reliability in robotics, renewable energy storage, and transportation infrastructure.
Filter and sort
Categories

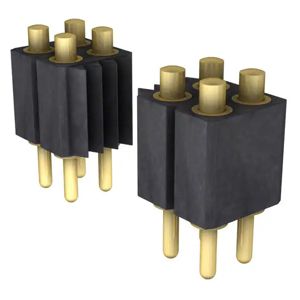

813-S1-066-10-015101
CONN SPRING PISTON 66POS PCB
813-SS-006-30-676101-CLIP
CONN SPRING PISTON 6POS SMD, HIG
823-22-014-10-001101
CONN SPRING PISTON 14POS PCB
009155005251006
5 POSITION

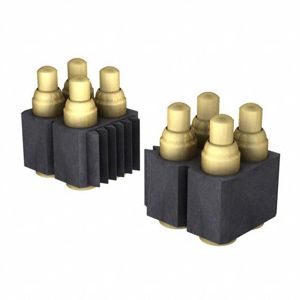

823-S1-020-30-014101
CONN SPRING PISTON 20POS SMD
812-22-054-30-002101
CONN SPRING PISTON 54POS SMD
8MM-11-0010-02-131191
CONN SPRING TARGET 10POS R/A SMD
812-22-006-30-030101
FMLB SPRING-LOADED CONN, SMT SIN
813-SS-030-10-474101
CONN SPRING PISTON 30POS PCB

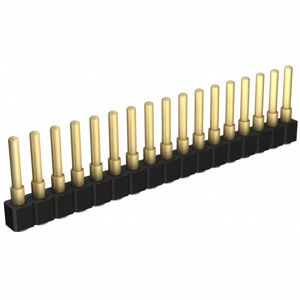

812-22-017-30-002101
CONN SPRING PISTON 17POS SMD
821-22-046-10-001101
CONN SPRING PISTON 46POS PCB
854-22-002-20-001101
CONN SPRING PISTON 2POS R/A PCB

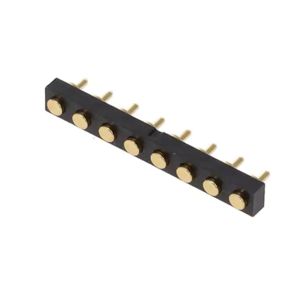

PH1-3F-08-FVP-24415-C1
CONN PAD FOR SPRING PINS 1X8

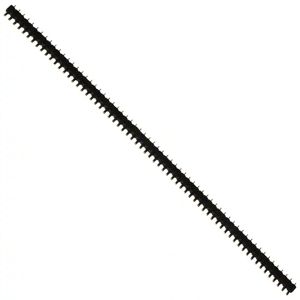

821-22-064-10-004101
CONN SPRING PISTON 64POS PCB

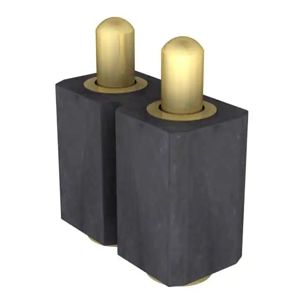

811-SS-002-30-681101-CLIP
CONN SPRING PISTON 2POS SMD, HIG
818-22-020-10-002101
CONN SPRING PISTON 20POS PCB
821-S1-004-30-012101
CONN SPRING PISTON 4POS SMD
PH1-3B-02-MVP-3345
CONN SPRING PISTON 2POS PCB

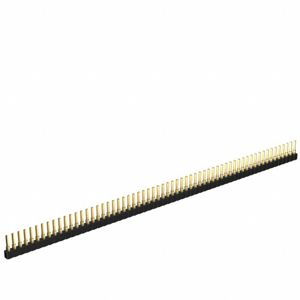

812-22-061-30-000101
CONN SPRING PISTON 61POS SMD
811-22-016-30-001101
CONN SPRING PISTON 16POS SMD
