1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories
969125-1
CONN MAG TERM 20-23AWG IDC
1742832-1
CONN MAG TERM 28-30AWG IDC
62244-6
CONN MAG TERM 16-18AWG CRIMP
1742203-1
CONN MAG TERM
62923-1
CONN MAG TERM 17-19AWG QC 0.250
63662-2
CONN MAG TERM 33-34AWG IDC
1601953-1
CONN MAG TERM 10-14AWG CRIMP
1217041-1
CONN MAG TERM POKE-IN
141101-2
CONN MAG TERM 15-18AWG CRIMP
63675-4
CONN MAG TERM 30-38AWG PCB
1601002-2
CONN MAG TERM 18-34AWG QC 0.250
4-1601035-1
CONN MAG TERM 18-34AWG QC 0.187
1394430-1
CONN MAG TERM 26-30AWG
1601013-1
CONN MAG TERM 18-34AWG QC 0.187
63486-1
CONN MAG TERM 20-23AWG QC 0.110
1217595-1
CONN MAG TERM TAB
1740698-2
CONN MAG TERM 26-30AWG
1601009-4
CONN MAG TERM 18-34AWG PCB
62310-2
CONN MAG TERM 7000-13000CMA CRMP

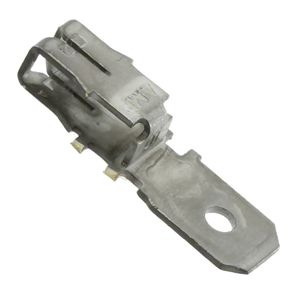

63664-1
CONN MAG TERM 23-27AWG QC 0.187
