Terminals - Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors: Category Overview
1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories
1601254-2
CONN MAG TERM 18-34AWG TAB
63455-1
CONN MAG TERM 4000-8500CMA CRIMP
1247004-3
MAGMATE "300 SERIES" WITH MULTIS
1601041-3
CONN MAG TERM 18-34AWG PCB
62244-3
CONN MAG TERM 16-18AWG CRIMP
63658-1
CONN MAG TERM 22-25AWG IDC
1217004-1
CONN MAG TERM 20-23.5AWG QC .187

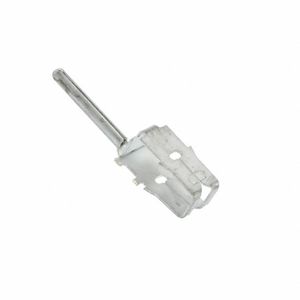

63569-1
CONN MAG TERM 28-31AWG PIN
1217146-1
CONN MAG TERM 24-26AWG CRIMP
969122-1
CONN MAG TERM 27-30AWG IDC
1217824-1
CONN MAG TERM 20-22AWG IDC
1601000-2
CONN MAG TERM 18-34AWG IDC
160810-2
CONN MAG TERM 28-30AWG QC 0.110

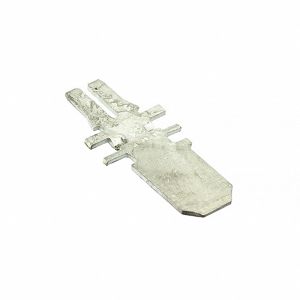

1742861-1
CONN MAG TERM 17-19AWG IDC
1217690-1
CONN MAG TERM 24-25.5AWG IDC
2348501-2
STD RANGE WIRE TO PCB TAB SMZ TE
1217671-1
CONN MAG TERM 1500-4200CMA CRIMP
2-1601243-2
CONN MAG TERM 18-34AWG TAB
62652-1
CONN MAG TERM 23-27AWG QC 0.250
63717-2
CONN MAG TERM 28-30AWG IDC
