Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
60487-2
CONN QC RCPT 16-18AWG 0.187
60742-1
CONN QC RCPT 14-18AWG 0.187
MNHU10-250DMIX-BOTTLE
CONN QC TAB 10-12AWG 0.250 25PC
76-FD16-187C
NON INS FEM DISCON 16-14G 100 BA
76-IMD16-187C
PVC INS MALE DISCON 16-14 100 BA
42474-3
CONN QC TAB 14-18AWG 0.250 CRIMP
94809
CONN QC TAB 18-22AWG 0.250 CRIMP
1217904-1
CONN QC RCPT 16-22AWG 0.250
160922-2
CONN QC RCPT 20-24AWG 0.110
0190030013
CONN QC RCPT 18-22AWG 0.187
2-520193-2
CONN QC RCPT 18-22AWG 0.187
60249-1
CONN QC RCPT 12-16AWG 0.250
0190030041
CONN QC RCPT 14-16AWG 0.250
0190020033
CONN QC RCPT 14-16AWG 0.187
1742785-1
110 FAST RCPT 18-22 010PTPBR

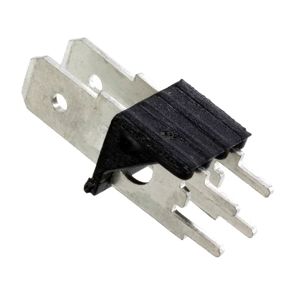

7812
CONN QC TAB 0.250 SOLDER

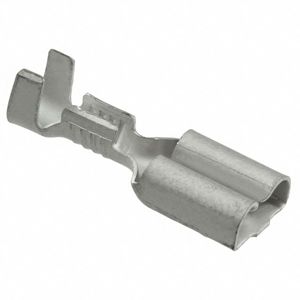

170108-4
CONN QC RCPT 14-18AWG 0.250

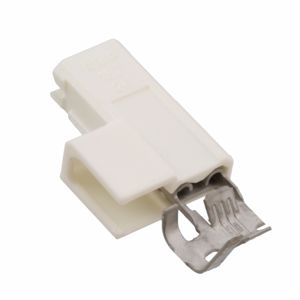

1969133-2
CONN QC RCPT 14-18AWG CRIMP

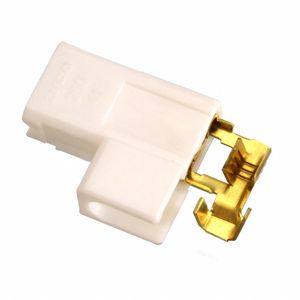

521282-1
CONN QC RCPT 14-18AWG 0.250

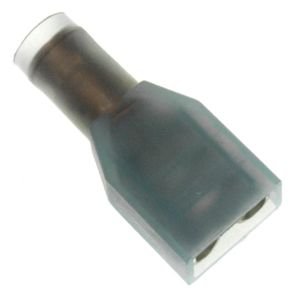

735159
CONN QC RCPT 13-15AWG 0.250
