Terminals - Quick Connects, Quick Disconnect Connectors
Terminals - Quick Connects, Quick Disconnect Connectors
Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories

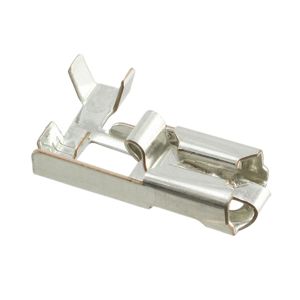

926820-6
CONN QC RCPT 15.5-20AWG 0.250

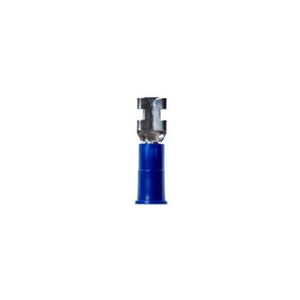

FDV14-250Q
FEMALE DISCONNECT VINYL 1=1PC

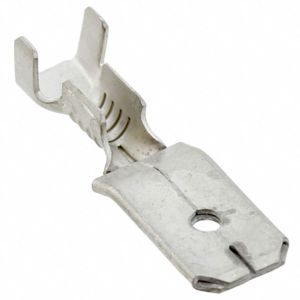

60006-2
CONN QC TAB 14-18AWG 0.250 CRIMP

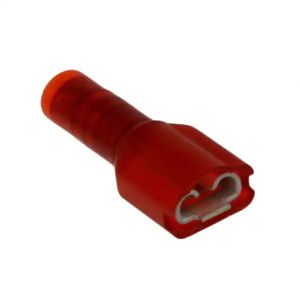

0190020012
CONN QC RCPT 18-22AWG 0.187

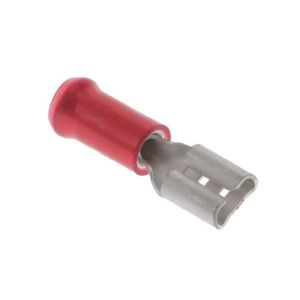

9-160483-5
CONN RCPT FAST 16-22 AWG PIDG

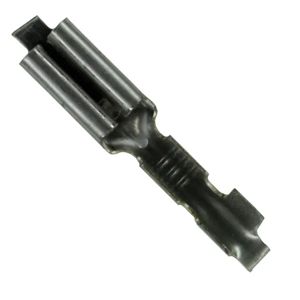

60415-1
CONN QC RCPT 18-22AWG 0.110

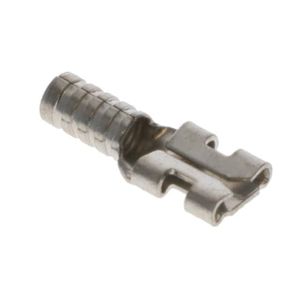

71F-187-20
CONN QC RCPT 18-22AWG 0.187

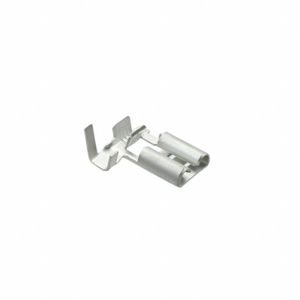

1742999-2
CONN QC RCPT 14-18AWG 0.250

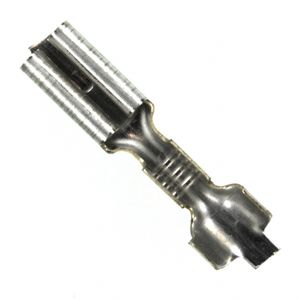

60729-1
CONN QC RCPT 18-22AWG 0.110

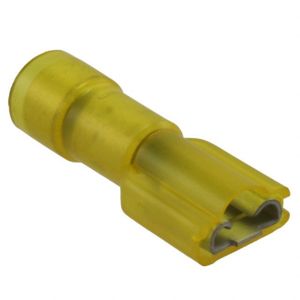

0196060006
CONN QC RCPT 10-12AWG 0.250

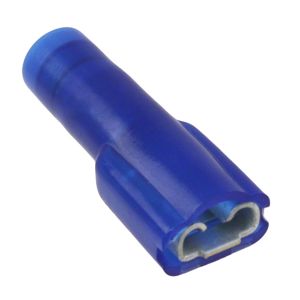

0190020031
CONN QC RCPT 14-16AWG 0.187

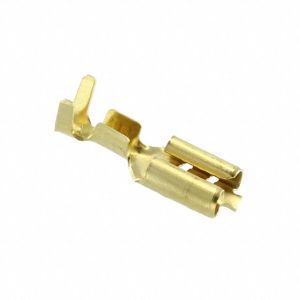

881623-1
CONN QC RCPT 0.187 CRIMP

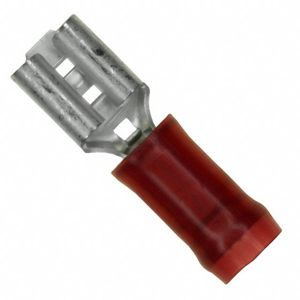

640917-1
CONN QC RCPT 18-22AWG 0.187

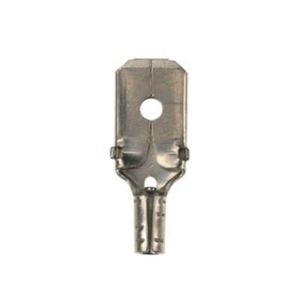

ED14-250MB-L
STRONGHOLD MALE DISCONNECT, NON-

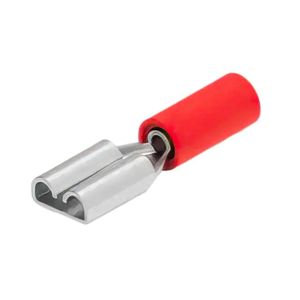

140950-1
TERMINAL REC FASTON PIDG 5

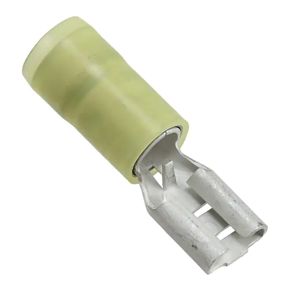

0190190038
CONN QC RCPT 10-12AWG 0.250

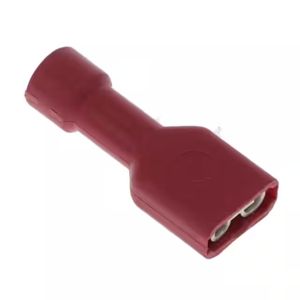

0190030126
CONN QC RCPT 18-22AWG 0.187

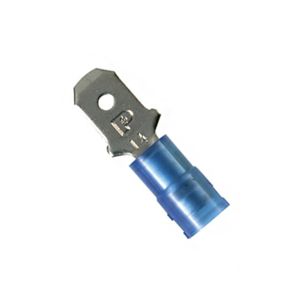

DNF14-250M-E
CONN QC TAB 14-16AWG 0.250 CRIMP

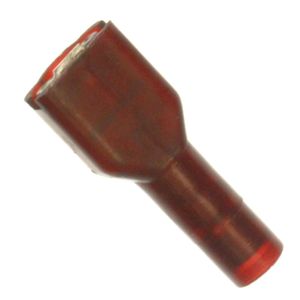

0190020009
CONN QC RCPT 18-22AWG 0.187

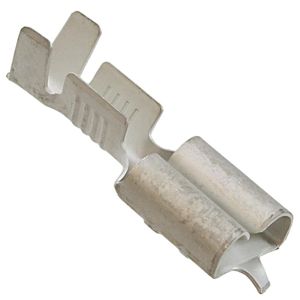

160917-2
CONN QC RCPT 13-17AWG 0.250
