Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories

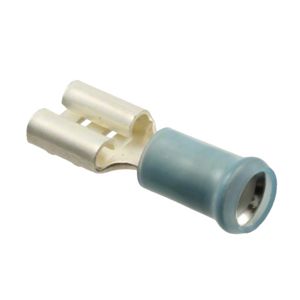

9-160313-6
CONN QC RCPT 13-17AWG 0.250

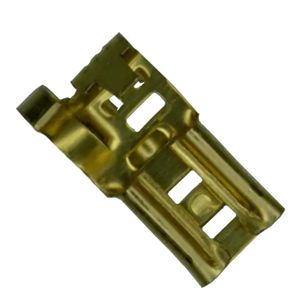

42800-1
CONN QC RCPT 16-20AWG 0.187

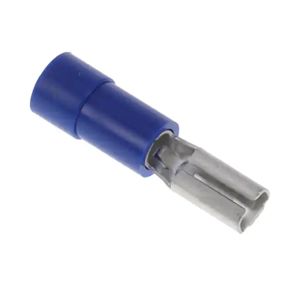

0190170028
.110X.032 FEM.QD INSULKRIMP (BB-

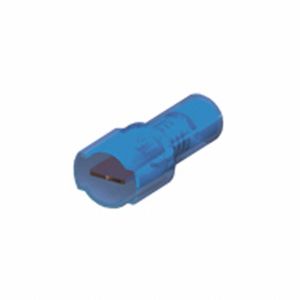

8299
CONN QC TAB 14-16AWG 0.250 CRIMP

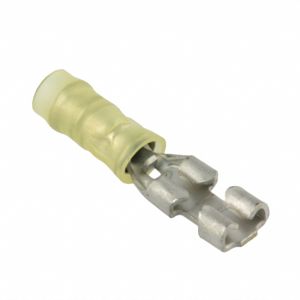

641324-2
CONN QC RCPT 24-26AWG 0.110

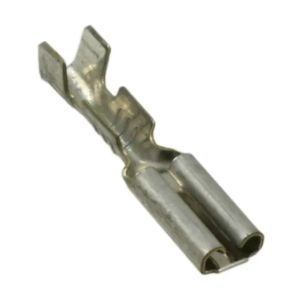

42470-1
CONN QC RCPT 18-22AWG 0.110

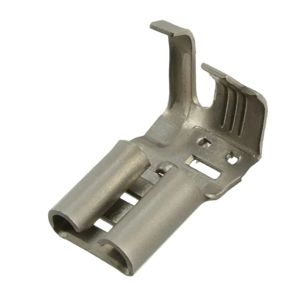

41531-1
CONN QC RCPT 12-18AWG 0.250

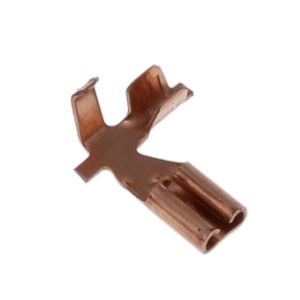

928885-3
FAH-FAST STECKH2,8

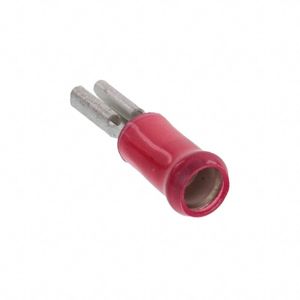

8-1377174-1
SMP 0-0165565-1

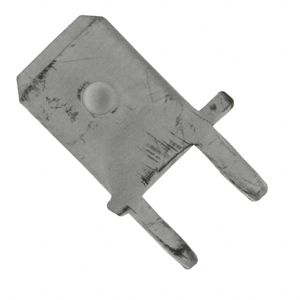

63650-1
CONN QC TAB 0.250 SOLDER

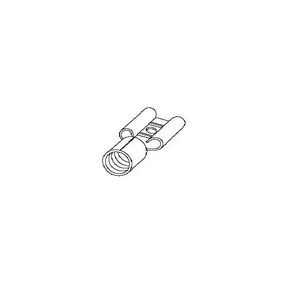

19016-0001
KRIMPTITE QUICK DISCONNECT, FEMA

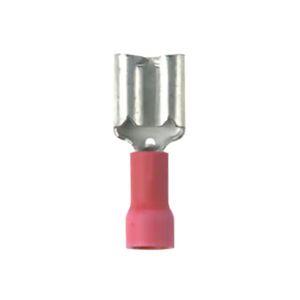

DV18-187B-MY
CONN QC RCPT 18-22AWG 0.187

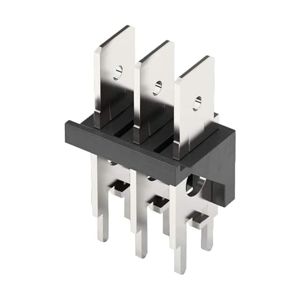

638307122007
WR-FAST_THT MALE RIGHT ANGLED HE

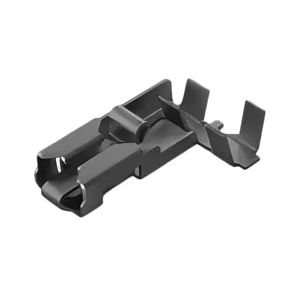

965972-1
POSLOCK REC. 6,3

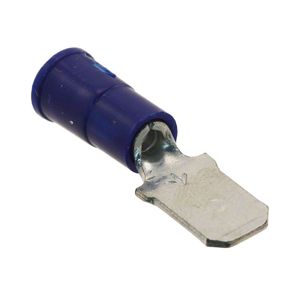

MTV14-250Q
MALE DISCON VINYL HIGHLAND 1=1PC

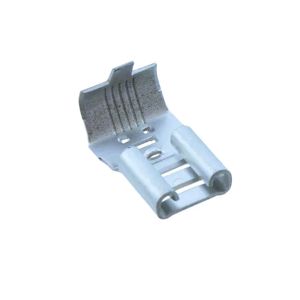

62056-3
CONN QC RCPT 12-18AWG 0.250

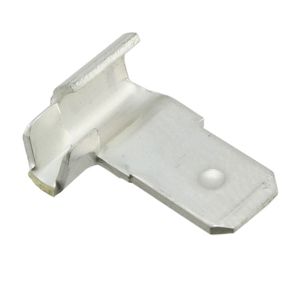

42770-2
CONN QC TAB 14-18AWG 0.250 CRIMP

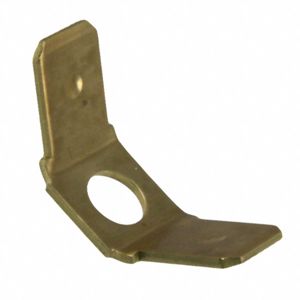

41616
CONN QC TAB 0.250

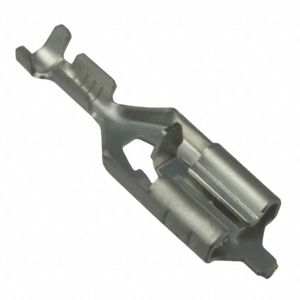

63119-1
CONN QC RCPT 18-22AWG 0.250

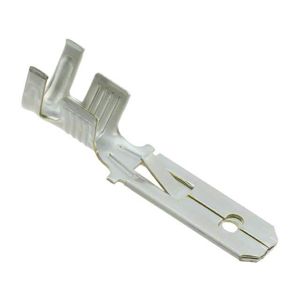

280080-2
CONN QC TAB 10-11.5AWG 0.250
