Terminals - Quick Connects, Quick Disconnect Connectors
Terminals - Quick Connects, Quick Disconnect Connectors
Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
4470
CONN QC RCPT 16-20AWG 0.250
7-520365-2
CONN QC RCPT 22-26AWG 0.110
DNH18-250FIB-Q
CONN QC RCPT 18-22AWG 0.250
9-520132-2
CONN QC RCPT 14-16AWG 0.250
61070-2
CONN QC RCPT 18-22AWG 0.110
160668-2
CONN QC RCPT 15.5-20AWG 0.110
3240155
CONN QC RCPT 16-20AWG 0.187
0190050015
CONN QC RCPT 10-12AWG 0.250
D14-250-M
CONN QC RCPT 14-16AWG 0.250
160655-3
CONN QC RCPT 15.5-20AWG 0.110
3240159
CONN QC RCPT 14-16AWG 0.250
DNF18-111FIB-M
CONN QC RCPT 18-22AWG 0.110
936604-1
250 FLAG P.LOCK MK-2 REC
170048-2
CONN QC RCPT 20-24AWG 0.110
6-160432-3
CONN QC RCPT 15.5-20AWG 0.250
280756-4
CONN QC RCPT 10-12AWG 0.375

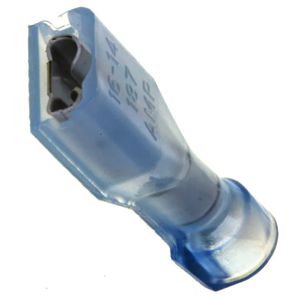

3-520410-2
CONN QC RCPT 14-16AWG 0.187

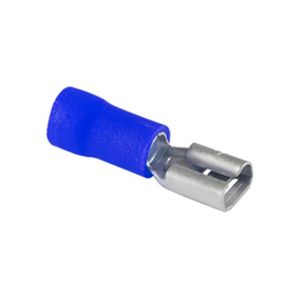

76-IFD16-110L
PVC INS FEMALE DISCONNECT 50 BAG
76-FT22
NON INS FLAG TERM 22-18WG

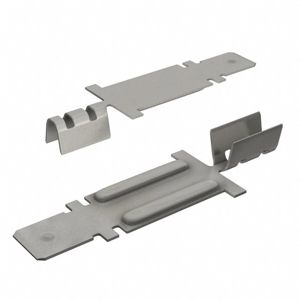

63301-1
CONN QC TAB 15-22AWG 0.250 CRIMP
