Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
2-520129-2
CONN QC RCPT 18-22AWG 0.250
60284-2
CONN QC TAB 0.205 SOLDER
1261
CONN QC TAB 0.187
60601-1
CONN QC RCPT 18-20AWG 0.110
170187-1
CONN QC RCPT 18-22AWG 0.250
0190080020
CONN QC RCPT 14-16AWG 0.187
0190030015
CONN QC RCPT 18-22AWG 0.187
175034-1
CONN QC RCPT 14-20AWG 0.187
2232342-1
PL EX 187 REC 22-16 AWG 0.3 X 22
640418-1
CONN QC RCPT 14-18AWG 0.250

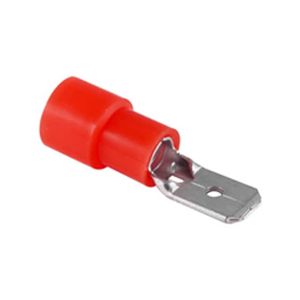

76-NIMD22-110L
NYLON INS MALE DISCONNECT 50 BAG
640417-1
CONN QC RCPT 14-18AWG 0.250
63809-1
CONN QC RCPT 14-18AWG 0.250
8279
CONN QC RCPT 14-16AWG 0.250
962835-1
CONN QC RCPT 13.5-17AWG 0.375
160928-2
CONN QC RCPT 17-20AWG 0.250
150699-2
CONN QC RCPT 16-20AWG 0.187
8-640931-1
CONN QC RCPT 14-16AWG 0.110
140716-2
CONN QC RCPT 22-24AWG 0.110
94820
CONN QC RCPT 14-16AWG 0.250
