Terminals - Quick Connects, Quick Disconnect Connectors
Terminals - Quick Connects, Quick Disconnect Connectors
Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
5-160447-2
CONN QC RCPT 13-17AWG 0.250
1-1377175-5
CONN QC RCPT 12-13AWG 0.250
DNF18-187-M
CONN QC RCPT 18-22AWG 0.187
MNU18-250DMIX-BOTTLE
CONN QC TAB 18-22AWG 0.250 CRIMP

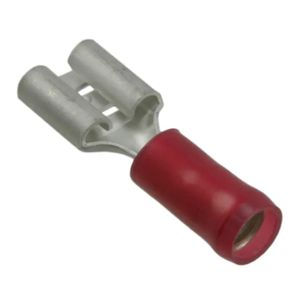

5-160583-2
250 PIDG FASTON REC
MNHU18-250DFIK
CONN QC RCPT 18-22AWG 0.250
160389-3
CONN QC RCPT 18-22AWG 0.250
63497-1
CONN QC TAB 19-23AWG 0.060 CRIMP
DNF14-206FIB-C
CONN QC RCPT 14-16AWG 0.187
521451-2
CONN QC TAB 14-18AWG 0.250 CRIMP

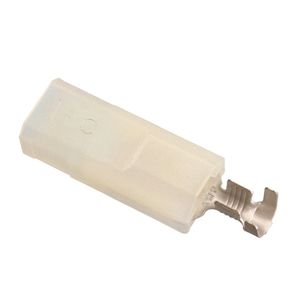

521227-2
CONN QC TAB 10-12AWG 0.250 CRIMP
2-520181-4
CONN QC RCPT 18-22AWG 0.187
3-521057-2
CONN QC TAB 14-16AWG 0.250 CRIMP
342368-2
CONN QC RCPT 20-24AWG 0.187
175224-1
CONN QC TAB 0.250 SOLDER
0350689902
CONN QC RCPT 18-20AWG 0.187
60991-1
CONN QC RCPT 16-22AWG 0.110
1217136-1
CONN QC TAB 0.250 SOLDER
0190170032
CONN QC RCPT 14-16AWG 0.187
76-FT12
NON INS FLAG TERM 12-10WG
