Definition:
Terminals - Quick Connects, also known as Quick Disconnect Connectors, are a specialized subset of electrical connectors designed for fast, tool-free mating and unmating. These components feature a male (tab) and female (receptacle) interface that allows for secure yet easily separable connections, making them ideal for applications requiring frequent assembly or disassembly.
Types of Quick Connect Terminals:
1. Spade Terminals: Flat, fork-shaped connectors for screw or stud attachment.
2. Bullet Connectors: Cylindrical male/female pairs for low-current applications.
3. Flag Terminals: Angled or straight tabs for tight spaces.
4. Blade Terminals: Thin, flat tabs common in automotive and appliance wiring.
5. Insulated vs. Non-Insulated: Options with PVC/nylon insulation for safety or bare metal for custom shielding.
Purchasing Recommendations:
- Current Rating: Match the terminal s ampacity to your circuit requirements.
- Wire Gauge Compatibility: Ensure the terminal accommodates your wire size (e.g., 22-10 AWG).
- Material: Select tin-plated copper for corrosion resistance or brass for cost-effectiveness.
- Insulation Needs: Prioritize heat-resistant insulated variants for high-vibration environments.
- Certifications: Look for UL, CSA, or RoHS compliance for reliability and regulatory adherence.
Quick Disconnect Connectors streamline wiring maintenance and reduce downtime opt for industry-standard designs (e.g., .250" or .187" tab sizes) to ensure interoperability. Always verify mating pair specifications to avoid mismatches.
Filter and sort
Categories
282349-1
POS.LOCK RCPT MKI FLAG V.
280050-2
CONN QC RCPT 15.5-20AWG 0.250
160927-4
CONN QC RCPT 13.5-17AWG 0.250
FDV18-250Q
FEMALE DISCONNECT VINYL 1=1PC

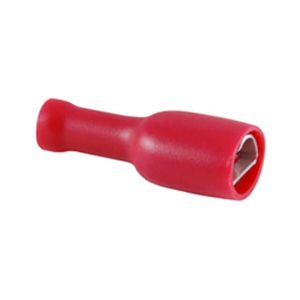

76-FIFD22-110L
PVC FULLY INS FEM DISCON 50 BAG
HT-72M-250-32
CONN QC TAB 14-16AWG 0.250 CRIMP
76-MD12
NON INS MALE DISCONNECT
0354189002
CONN QC RCPT 16-22AWG 0.187
DNF18206FIBX-2K
CONN QC RCPT 18-22AWG 0.187
1742595-1
CONN QC RCPT 14-18AWG 0.205
1217378-2
CONN QC RCPT 18-22AWG 0.250
4-521098-2
CONN QC TAB 10-12AWG 0.250 CRIMP
76-MD22L
NON INS MALE DISCONNECT 50 BAG

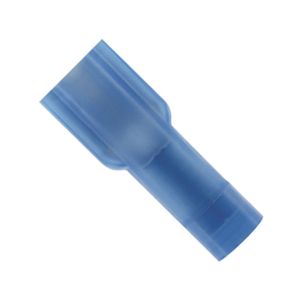

DNG14-250FB-M
CONN QC RCPT 14-16AWG 0.250

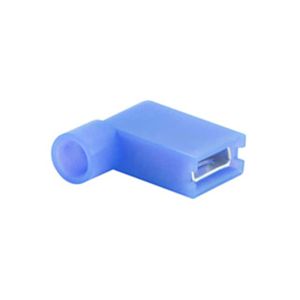

76-NIFT16C
NYLON INS FLAG TERM 16-14 100 BA
63314-1
CONN QC RCPT 14-18AWG 0.250
DNFR14-250B-L
CONN QC RCPT 14-16AWG 0.250
EDNF18250FIMB-Q
STRONGHOLD MALE DISCONNECT, NYLO

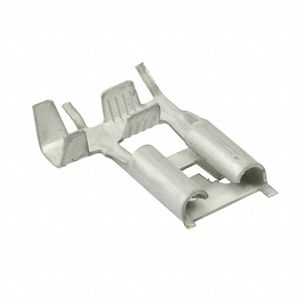

180373-2
CONN QC RCPT 13-17AWG 0.312
520971-2
CONN QC RCPT 14-18AWG 0.250
