Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories

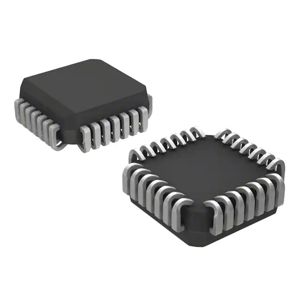

MC100E196FNG
IC DELAY LINE 128TAP PROG 28PLCC
DS1135L-35/T&R
IC DELAY LINE 35NS 8-USOP
DS1100Z-60/T&R
IC DELAY LINE 5TAP 60NS 8SOIC
DS1005S-75/T&R
IC DELAY LINE 5TAP 75NS 16SOIC
DS1110S-175+
IC DELAY LINE 10TAP 175NS 16SOIC

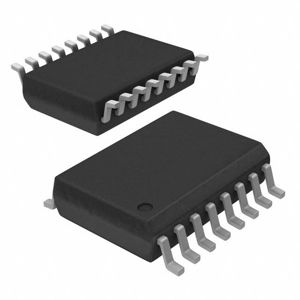

DS1021S-50+T&R
IC DEL LN 256TAP 137.5NS 16SOIC
DS1005S-125+T&R
IC DELAY LINE 5TAP 125NS 16SOIC
DS1040Z-B50
IC DELAY LINE 5TAP 50NS 8SOIC
DS1100LU-200
DELAY LINE 3V 5TAP 200NS 8-USOP
DS1100LZ-250/T&R
IC DELAY LINE 5TAP 250NS 8SOIC
SY89297UMG
IC DELAY LINE 1024TAP PROG 24QFN
DS1135LU-25+T&R
IC DELAY LINE 25NS 8UMAX
DS1007S-2/T&R
IC DELAY LINE PROG 16SOIC
DS1110E-60+
IC DELAY LINE 10TAP 60NS 14TSSOP
MC10E195FN
IC DELAY LINE 128TAP PROG 28PLCC
DS1040Z-D60+
IC DELAY LINE 5TAP 60NS 8SOIC
DS1100U-125/T&R
IC DELAY LINE 5TAP 125NS 8UMAX
DS1100LZ-45/T&R
IC DELAY LINE 5TAP 45NS 8SOIC
DS1020S-15/T&R
IC DEL LN 256TAP 48.25NS 16SOIC
DS1100LZ-60/T&R
IC DELAY LINE 5TAP 60NS 8SOIC
