Definition
Clock/Timing - Delay Lines are specialized Integrated Circuits (ICs) designed to introduce precise time delays in digital signal paths. These components ensure accurate synchronization, signal alignment, and phase adjustment in high-speed electronic systems. Delay lines are crucial in applications requiring strict timing control, such as data communication, memory interfaces, and microprocessor clock distribution.
Types of Delay Lines
- Fixed Delay Lines Provide a predetermined delay, ideal for consistent timing adjustments.
- Programmable Delay Lines Allow user-configurable delays via digital interfaces (e.g., SPI, I C).
- Voltage-Controlled Delay Lines (VCDLs) Adjust delay dynamically using an analog voltage input.
- Differential Delay Lines Support high-speed differential signaling (e.g., LVDS, CML).
- Temperature-Compensated Delay Lines Maintain stable delays despite thermal fluctuations.
Buying Considerations
- Delay Range & Precision Select based on required resolution (e.g., picosecond-level accuracy).
- Signal Compatibility Ensure support for your interface (e.g., CMOS, TTL, LVDS).
- Power Consumption Critical for portable/battery-operated devices.
- Package Type Choose between surface-mount (SMD) or through-hole based on PCB design.
- Jitter Performance Low jitter is vital for high-frequency applications.
Delay lines optimize system timing integrity whether for FPGA clock distribution, network synchronization, or test equipment. Evaluate specifications carefully to match your design requirements.
Filter and sort
Categories
DS1004Z-3/T&R
IC DELAY LINE 5TAP 17NS 8SOIC
DS1100LC-201/T&R
IC DELAY LINE 5TAP 201NS 8SOIC

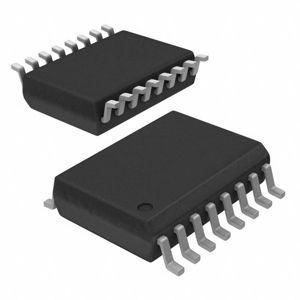

DS1007S-12/T&R
IC DELAY LINE PROG 16SOIC
DS1100LZ-25/T&R
IC DELAY LINE 5TAP 25NS 8SOIC
ASNT5106-PQC
IC DELAY LINE W/ 0-250PS 24PIN
DS1135Z-8/T&R
IC DELAY LINE 8NS 8SOIC
DS1010-100
IC DELAY LINE 10TAP 100NS 14DIP
DS1013G-15
IC DELAY LINE 15NS 14DIP
DS1135U-12+T&R
IC DELAY LINE 12NS 8UMAX
DS1013S-50+T&R
IC DELAY LINE 50NS 16SOIC
DS1013S-100+
IC DELAY LINE 100NS 16SOIC
DS1100LZ-50
IC DELAY LINE 5TAP 50NS 8SOIC
DS1005H-60
DS1005 5-TAP SILICON DELAY LINE
DS1100Z-30/T&R
IC DELAY LINE 5TAP 30NS 8SOIC

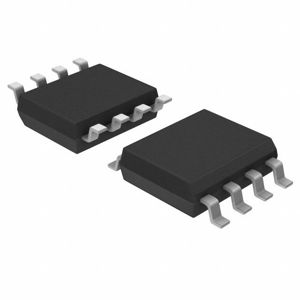

DS1035Z-30
DELAY LINE 35TAP 30NS 8-SOIC
DS1035Z-30/T&R
DELAY LINE 35TAP 30NS 8-SOIC
DS1100LZ-40/T&R
IC DELAY LINE 5TAP 40NS 8SOIC
DS1023S-500
IC DEL LINE 256TAP 1275NS 16SOIC
DS1100LZ-75+W
IC DELAY LINE 5TAP 75NS 8SOIC
DS1135LU-15/T&R
IC DELAY LINE 15NS 8UMAX
