FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

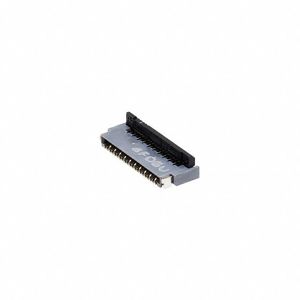

FH35C-21S-0.3SHW(99)
CONN FPC 21POS 0.30MM R/A
XF3M-0715-1B
CONN FFC FPC 7POS 0.50MM R/A

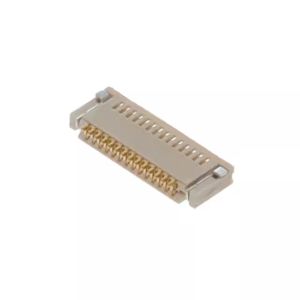

10051922-1410EHLF
CONN FPC BOTTOM 14POS 0.50MM R/A
0541323333
CONN FFC BOTTOM 33POS 0.50MM R/A
5019123790
CONN FPC BOTTOM 37POS 0.30MM R/A

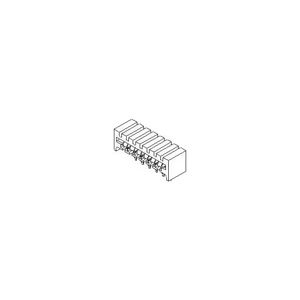

22-15-3063
FFC/FPC CONNECTOR ASSY
FH63S-40S-0.5SH
CONN FFC/FPC RCPT 0.5MM 40POS

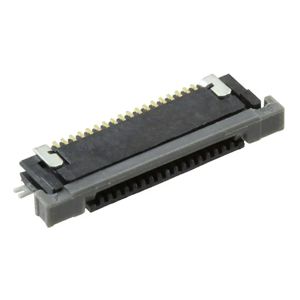

SFV18R-3STBE1HLF
CONN FPC BOTTOM 18POS 0.50MM R/A
687350124422
CONN FPC VERT 50POS 0.50MM SMD
2345-C12TD1T
FFC/FPC SOCKET, .5MM PITCH, 12 P
FH36W-31S-0.3SHW(99)
CONN FPC BOTTOM 31POS 0.30MM R/A
FH33-26S-0.5SH(10)
CONN FFC BOTTOM 26POS 0.50MM R/A
0528521472
CONN FFC BOTTOM 14POS 1.00MM R/A
66226-005LF
CONN FFC HEADER 5POS 2.54MM
FH12-36S-0.5SVA(54)
CONN FFC VERT 36POS 0.50MM SMD
0541043331
CONN FFC TOP 33POS 0.50MM R/A

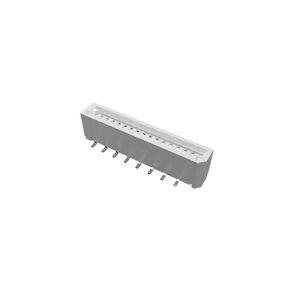

F52L-1A7A1-11016
FLEX CONNECTOR, 1.00MM PITCH, HE
0528080470
CONN FPC VERT 4POS 1.00MM SMD
FA5B008HP1
CONN FPC BOTTOM 8POS 0.50MM SMD
0522710469
CONN FPC BOTTOM 4POS 1.00MM R/A
