FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories
046288030000846+
CONN FFC BOTTOM 30POS 0.50MM R/A

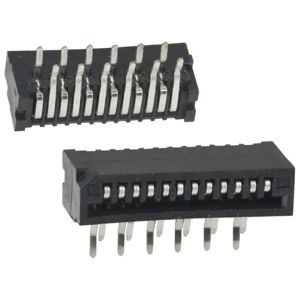

HLW12R-2C7LF
CONN FFC FPC TOP 12POS 1MM R/A
F52R-1A7H1-11018
FLEX CONNECTOR, 1.00MM PITCH, HE
AYF352325A
CONN FPC TOP 23POS 0.3MM SMD R/A

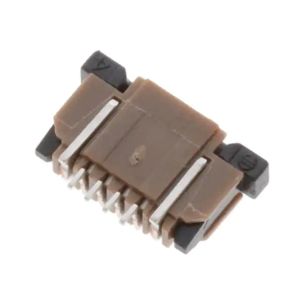

SFW4R-1STAE1LF
CONN FPC BOTTOM 4POS 1.00MM R/A
687120182122
CONN FFC FPC 20POS 0.5MM R/A
1-1734248-8
CONN FPC VERT 18POS 1.00MM SMD
0528522670
CONN FFC BOTTOM 26POS 1.00MM R/A
FFC2B35-18-G
18W,0.5MM FFC CON,R/A,BOTTOM CON
2005280051
1.0 FPC ZIF BTM CONT EMBT

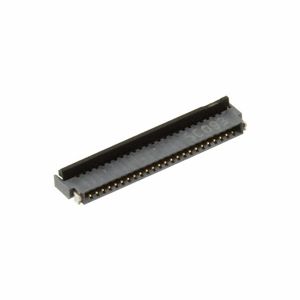

FH34SRJ-24S-0.5SH(50)
CONN FPC/FFC 24POS .5MM
SFV10R-4STBE1HLF
CONN FPC TOP 10POS 0.50MM R/A

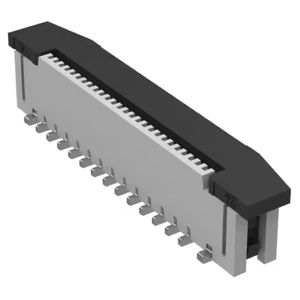

CF20261V0R0-NH
CF20 SERIES 0.50MM(.020") ZIF TO
FH12-6S-0.5SH(55)
CONN FFC BOTTOM 6POS 0.50MM R/A
0541325062
CONN FFC BOTTOM 50POS 0.50MM R/A
TF31-45S-0.5SH(800)
CONN FFC 45POS 0.50MM SMD
XF2U-1415-3A
CONN FPC 14POS 0.50MM R/A
0781272410
CONN 0.5 FPC ZIF ST TP 24CKT
0528070910
CONN FPC TOP 9POS 1.00MM R/A
0528082271
CONN FFC FPC VERT 22POS 1MM SMD
