FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories
046293613005829+
CONN FPC 13POS 0.30MM R/A
51296-1233
0.5 FPC CONN ZIF HSG ASSY12CKT E
XF2M-3315-1A-R100
CONN FPC 33POS 0.50MM R/A
SFW8R-3STE1LF
CONN FFC BOTTOM 8POS 1.00MM R/A
046809640410846+
0.5MM PITCH - 40 POS - RT ANGLE
046844713002846+
0.3MM PITCH - 13 POS - RT ANGLE
XF2B-3545-31A
CONN FPC 35POS 0.30MM R/A
046810640002846+
FPC 0.5MM
501616-5185-C
03 FPC E/O ASSY 51 CKT

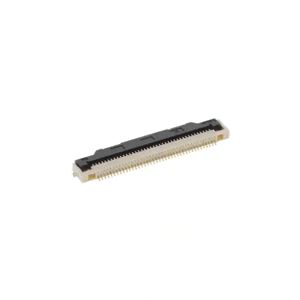

046806040000846+
0.5MM PITCH - 40 POS - RIGHT ANG
5022443330
CONN FFC BOTTOM 33POS 0.50MM R/A
AYF333935
CONN FPC 39POS 0.30MM R/A
CF07261U0R0-NH
CF07 SERIES 1.00MM(.039") ZIF SI
XF3H-5755-31A
CONN FPC BOTTOM 57POS 0.30MM R/A

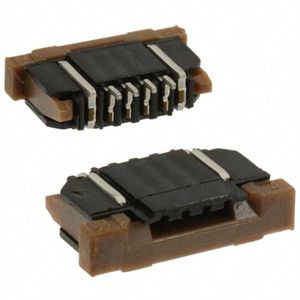

SFW4R-4STE1LF
CONN FFC FPC TOP 4POS 1.00MM R/A
046214012010846+
0.5MM PITCH - 12 POS - VERTICAL

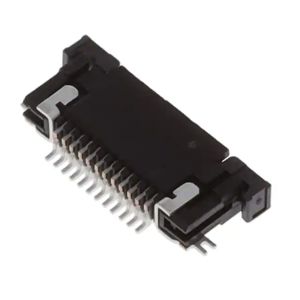

SFV12R-2STE9HLF
CONN FFC TOP 12POS 0.50MM R/A
FH34SRJ-30S-0.5SH(99)
CONN FFC FPC 30POS 0.50MM R/A
0528070610
CONN FPC TOP 6POS 1.00MM R/A
51374-5073
0.5 FPC CONN HSG ASSY 50CKT EMBS
