FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories
4-2041390-5
0.3 FPC 45P ZIF BC G/F
FH19C-40S-0.5SH(10)
CONN FFC BOTTOM 40POS 0.50MM R/A

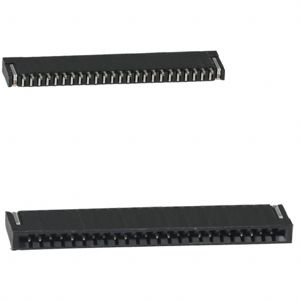

HFW24R-1STE1LF
CONN FFC BOTTOM 24POS 1.00MM R/A
52044-2245
22CKT 1.25 FFC CONN ASSY
TF38-20S-0.5SV(830)
CONN FFC 20POS 0.50MM SMD

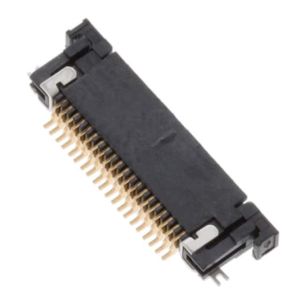

SFV20R-2STBE1HLF
CONN FFC TOP 20POS 0.50MM R/A
FH19C-20S-0.5SH(99)
CONN FFC BOTTOM 20POS 0.50MM R/A
FH19C-30S-0.5SH(99)
CONN FFC BOTTOM 30POS 0.50MM R/A
5022504191
CONN FPC 41POS 0.30MM R/A
FH26W-29S-0.3SHW(60)
CONN FFC FPC 0.3MM SMD

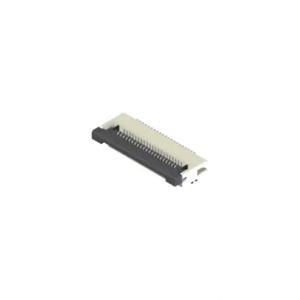

CF25181D0R0-05-NH
CF25 SERIES 0.50MM(.020") ZIF ON

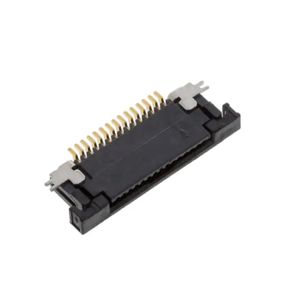

SFV15R-1STBE1HLF
CONN FFC BOTTOM 15POS 0.50MM R/A
1734248-3
CONN FPC VERT 3POS 1.00MM SMD
0522071433
CONN FFC FPC TOP 14POS 1MM R/A
046808607000846+
BATTERY FPC CONNECTOR
686126148922
CONN 1MM HORZ BOTTOM SMD 26POS

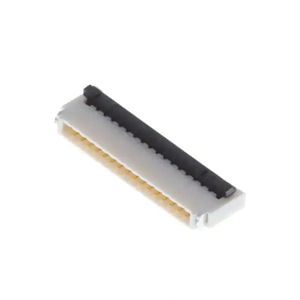

F3311A7H121016E200
FLEX CONNECTOR, P=0.50MM, H=1.00

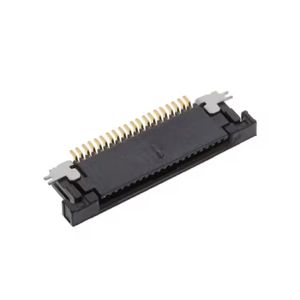

SFV20R-1STBE1HLF
CONN FFC BOTTOM 20POS 0.50MM R/A
XF2U-0815-3A
CONN FPC 8POS 0.50MM R/A

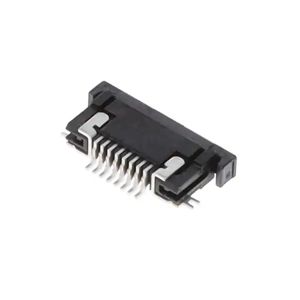

SFV8R-1STE1HLF
CONN FFC BOTTOM 8POS 0.50MM R/A
