FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories
5052782033
0.5 FFC ZIF BTM CONT EMBT PKG 20
0524373033
CONN FFC BOTTOM 30POS 0.50MM R/A
687130149022
CONN .5MM HORZ BOTTOM SMD 30POS

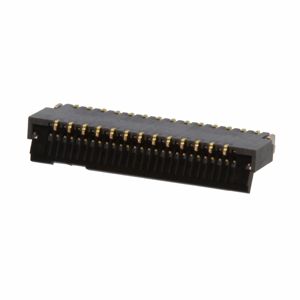

FH35C-27S-0.3SHW(99)
CONN FPC 27POS 0.30MM R/A
FH12-24S-0.5SVA(54)
CONN FFC VERT 24POS 0.50MM SMD
F31K-1A7H1-11012
FLEX CONNECTOR, 0.50MM PITCH, HE
FH34SRJ-22S-0.5SH(50)
CONN FPC/FFC 22POS .5MM
687135149022
CONN .5MM HORZ BOTTOM SMD 35POS
TF12S-15S-0.5SH(800)
CONN FFC 15POS 0.50MM
AYF532265TA
CONN FPC 22POS 0.50MM R/A
FH12A-36S-0.5SH(55)
CONN FFC TOP 36POS 0.50MM R/A

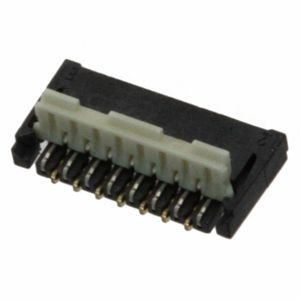

AYF331535
CONN FPC 15POS 0.30MM R/A
FA5B050HP1
CONN FPC BOTTOM 50POS 0.50MM SMD
0541324362
CONN FFC BOTTOM 43POS 0.50MM R/A
686106183422
CONN FFC TOP 6POS 1MM SMD R/A
FFC3A20-25-T
25W, 1MM FFC CON, VERT, H5.5MM,

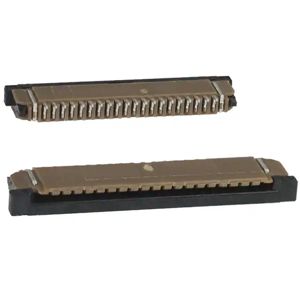

SFW20R-2STE1LF
CONN FFC FPC TOP 20POS 1MM R/A
FH28D-55S-0.5SH(05)
CONN FFC BOTTOM 55POS 0.50MM R/A

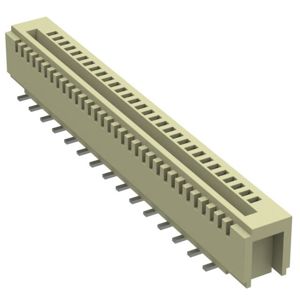

CF16301M0R0-NH
CF16 SERIES 1.00MM(.039") LIF TO
XF3M-1315-1B
CONN FFC FPC 13POS 0.50MM R/A
