1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories
63658-3
CONN MAG TERM 22-25AWG IDC
1217052-1
CONN MAG TERM 30AWG TAB
63464-3
CONN MAG TERM 17-19AWG QC 0.250
63710-2
CONN MAG TERM 31-33AWG IDC
63598-1
CONN MAG TERM 17-19AWG QC 0.250
62512-1
CONN MAG TERM 27-30AWG QC 0.187
1217031-1
CONN MAG TERM 20-22AWG QC 0.250
6-1601046-2
CONN MAG TERM 18-34AWG IDC
63663-2
CONN MAG TERM 20-22AWG QC 0.187
1217013-1
CONN MAG TERM 22-25AWG TAB
63585-1
CONN MAG TERM 23-27AWG QC 0.187
1601237-1
CONN MAG TERM 27-36AWG IDC

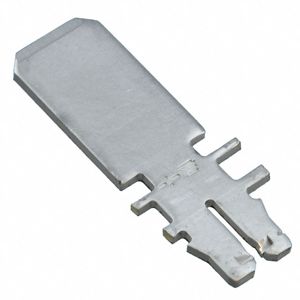

136826-1
CONN MAG TERM 17-18AWG IDC
881257-3
CONN MAG TERM 18-22AWG POKE-IN
1217642-1
CONN MAG TERM 25-27AWG PCB
4-1601058-2
CONN MAG TERM 18-34AWG QC 0.187
2120744-2
CONN MAG TERM 26.5-29.5AWG PRESS
2-1601042-2
CONN MAG TERM 18-34AWG PIN
41766
CONN MAG TERM 3000-7000CMA CRIMP
1217302-1
CONN MAG TERM 31-33AWG PCB
