1. Definition of Magnetic Wire Connectors
Terminals - Magnetic Wire Connectors are specialized electrical components designed to establish secure, low-resistance connections for magnet wire (enameled wire) in high-performance applications. These connectors feature precision-engineered terminals that pierce or displace the wire's insulation, ensuring reliable conductivity without stripping. Commonly used in transformers, motors, solenoids, and inductors, they excel in environments demanding vibration resistance, compact spacing, and efficient power transmission.
2. Types of Magnetic Wire Connectors
This category includes several key variants:
- Insulation Displacement Connectors (IDC): Slotted terminals that cut through enamel insulation for gas-tight connections.
- Crimp Terminals: Pre-insulated or bare metal sleeves crimped onto stripped magnet wire.
- PCB Mount Connectors: Board-mounted terminals for direct magnet wire attachment.
- Quick-Connect Terminals: Tool-free designs for rapid assembly.
Materials range from phosphor bronze (for high conductivity) to nickel-plated steel (for durability), with voltage ratings spanning 300V to 1kV+.
3. Purchasing Recommendations
When selecting Magnetic Wire Connectors, consider:
- Wire Gauge Compatibility: Match terminal size (e.g., 18-22 AWG) to your wire diameter.
- Current Rating: Ensure the connector meets or exceeds the application s amperage needs.
- Environmental Factors: Opt for heat-resistant or waterproof designs if exposed to extreme conditions.
- Certifications: Look for UL, IEC, or RoHS compliance for safety and regulatory adherence.
For automated production, IDC types reduce labor costs, while hand-assembled projects may favor crimp terminals. Partner with trusted suppliers to avoid counterfeit components in critical circuits.
Note: Always verify datasheets for thermal cycling performance and termination torque specifications.
Filter and sort
Categories
1217355-1
CONN MAG TERM 15-16AWG IDC
62306-2
CONN MAG TERM 1500-5000CMA CRIMP
926852-2
CONN MAG TERM 23-26AWG IDC
1601011-2
CONN MAG TERM 18-34AWG QC 0.187
1742941-1
CONN MAG TERM 33-34AWG PCB

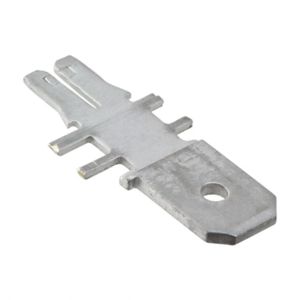

1217516-1
CONN MAG TERM 20-23AWG IDC
1217264-1
CONN MAG TERM 14-22AWG CRIMP
1217924-1
CONN MAG TERM 20-22AWG QC 0.250
316292-1
CONN MAG TERM 13-18AWG CRIMP
62608-1
CONN MAG TERM 28-30AWG CRIMP
1742833-1
CONN MAG TERM 31-33AWG IDC
1217176-1
CONN MAG TERM 16-18AWG CRIMP
2120746-2
CONN MAG TERM 20-22.5AWG PRESS
2238087-1
MAG-MATE TAB 34-33 CU / 33-31 AL
63564-1
CONN MAG TERM 2000-5400CMA CRIMP

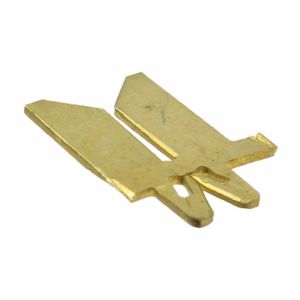

1601012-1
CONN MAG TERM 18-34AWG IDC
63877-1
CONN MAG TERM 30-32AWG IDC
63637-1
CONN MAG TERM 18-22AWG CRIMP

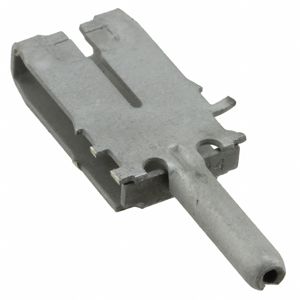

63277-1
CONN MAG TERM 20-22AWG PIN
160897-2
CONN MAG TERM 22-24AWG TAB
