FFC, FPC (Flat Flexible) Connectors
FFC, FPC (Flat Flexible) Connectors Category Overview
1) Definition of FFC, FPC (Flat Flexible) Connectors
FFC (Flat Flexible Cable) and FPC (Flexible Printed Circuit) connectors are specialized interconnects designed to interface with flat, flexible circuitry. These connectors enable high-density, reliable connections in compact electronic assemblies where space constraints and flexibility are critical. FFC/FPC connectors are widely used in applications requiring repeated flexing or dynamic movement, such as in consumer electronics, automotive systems, and industrial machinery.
2) Types of FFC, FPC Connectors
This category includes several connector variants tailored to different design requirements:
- ZIF (Zero Insertion Force) Connectors: Feature a locking mechanism that minimizes stress during insertion/removal, ideal for delicate FFC/FPC cables.
- LIF (Low Insertion Force) Connectors: Offer moderate insertion force with secure retention, balancing ease of use and stability.
- Non-ZIF Connectors: Simpler, cost-effective designs for applications where frequent disconnection is unnecessary.
- Top-Entry vs. Bottom-Entry Connectors: Differ in cable orientation, accommodating diverse PCB layouts.
- Pitch Options: Ranging from 0.3mm to 2.54mm to support ultra-fine or standard flex cable densities.
3) Purchasing Recommendations
When selecting FFC/FPC connectors, consider:
- Pitch and Circuit Size: Match the connector pitch to the FFC/FPC specifications to ensure proper alignment.
- Actuation Type: ZIF connectors are preferred for high-cycle applications, while LIF/Non-ZIF suit static installations.
- Durability: Verify mechanical lifespan (insertion cycles) and environmental ratings (temperature, vibration) for harsh conditions.
- Manufacturer Compatibility: Opt for standardized designs (e.g., Molex, Hirose, TE Connectivity) to simplify sourcing.
This category ensures seamless integration of flexible circuits into modern electronics, combining space efficiency with robust performance. Explore subcategories to pinpoint connectors aligned with your project s technical and budgetary needs.
Filter and sort
Categories

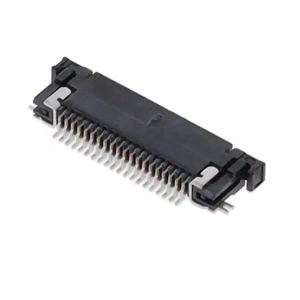

SFV20R-2STE9HLF
CONN FFC TOP 20POS 0.50MM R/A
SFW16S-2STAE1LF
CONN FPC VERT 16POS 1.00MM SMD
5052781433
0.5 FFC ZIF BTM CONT EMBT PKG 14
0039532175
CONN FFC VERT 17POS 1.25MM PCB
XF2U-1015-3A
CONN FPC 10POS 0.50MM R/A
0039532284
CONN FFC TOP 28POS 1.25MM R/A
FH12-36S-0.5SH(55)
CONN FFC BOTTOM 36POS 0.50MM R/A
39-53-2224
1.25 FFC ZIF HSG ASSY 22CKT

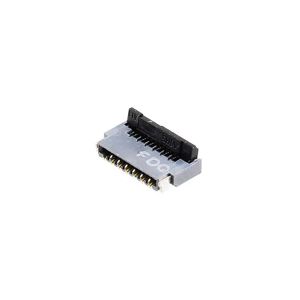

FH35C-13S-0.3SHW(99)
CONN FPC 13POS 0.30MM R/A
15-38-8148
SL FFC/FPC OPT A FEMALE TIN 14CK

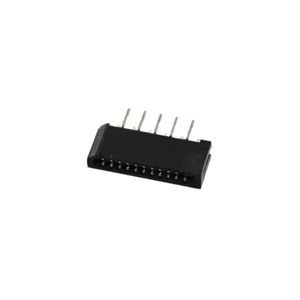

PCB-C-11-T-20
FPC/FFC CONNECTOR, LIF TYPE, 1.0

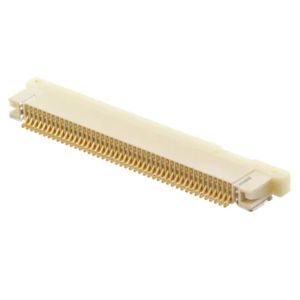

4-1734592-5
CONN FPC BOTTOM 45POS 0.50MM R/A
0527460671
CONN FFC BOTTOM 6POS 0.50MM R/A

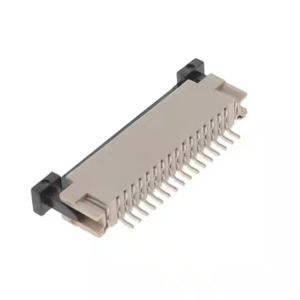

ZF1-16-02-T-WT-TR
1.00 MM ZERO INSERTION FORCE FLA

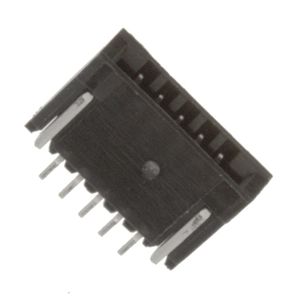

HFW5R-1STE1H1LF
CONN FFC BOTTOM 5POS 1.00MM R/A

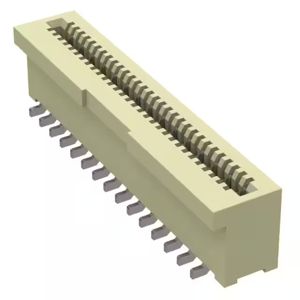

CF24302V0R0-NH
CF24 SERIES 0.50MM(.020") LIF TO

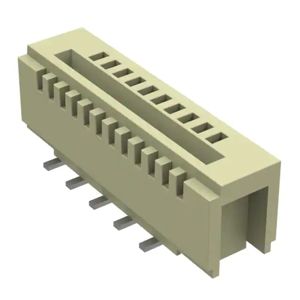

CF16101M0R0-NH
CF16 SERIES 1.00MM(.039") LIF TO
0526102433
CONN FPC VERT 24POS 1.00MM SMD
0522071060
CONN FFC FPC TOP 10POS 1MM R/A
FH12-18S-0.5SH(55)
CONN FFC BOTTOM 18POS 0.50MM R/A
